Low Insertion MAN 4×4 Fiber Optical Switch With High Wavelength 650-1310nm

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

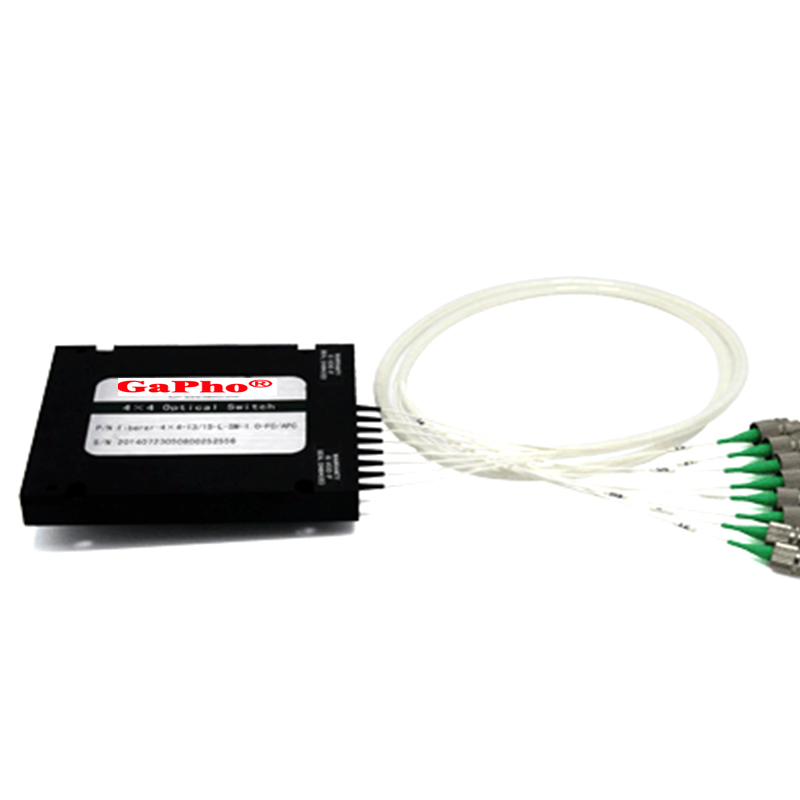

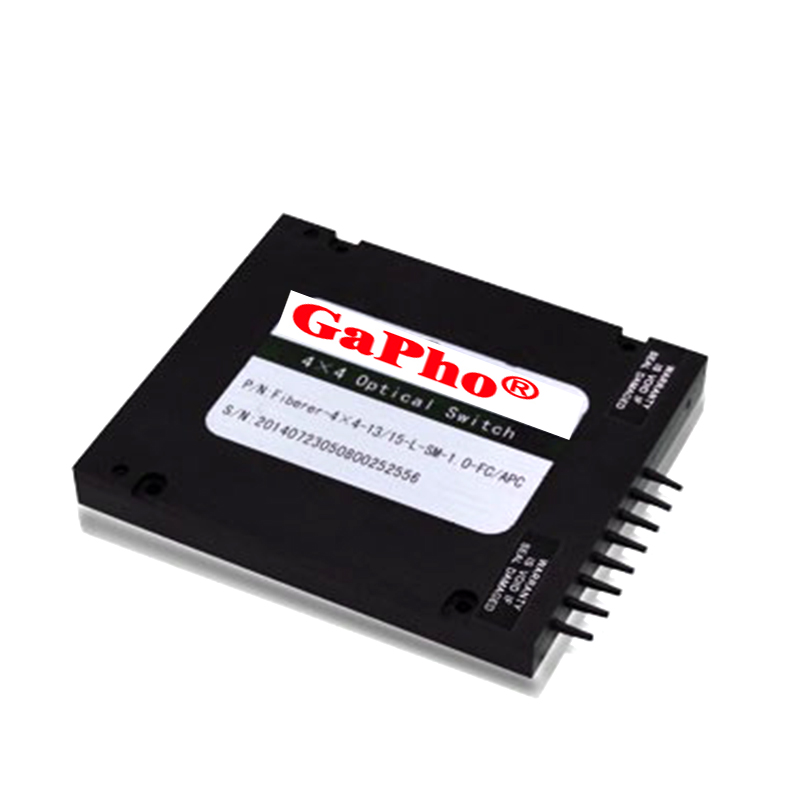

Low Insertion MAN 4×4 Fiber Optical Switch With High Wavelength 650-1310nm

  • 1
  • 2

Brand Name : GAPHO

Model Number : 4×4 Optical Switch

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T, D/P

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton

Wavelength Range : 650～1310 ;1260～1670

Testing Wavelength : 650/780/850/980/1064/1310 ;1310/1490/1550/1625/1650

Insertion Loss : Typ:2.0,Max:2.8; Typ:1.8 ,Max:2.5

Dimension : (L)110×(W)95×(H)14

Storage Temperature : -40～+85

Operation Temperature : -40～+85

Power supply : 3.0 or 5.0

Contact Now

4×4 Optical Switch Low insertion,high wavelength range(650～1310,1260-1670),forMetropolitan Area Network

Application

  • Metropolitan Area Network
  • R&D in Laboratory
  • System Monitoring
  • Configurable OADM

Features

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching

Performance

Parameters OSW-4×4
Wavelength Range nm 650～1310 1260～1670
Testing Wavelength nm 650/780/850/980/1064/1310 1310/1490/1550/1625/1650
Insertion Loss dB Typ:2.0,Max:2.8 Typ:1.8 ,Max:2.5
Return Loss dB ≥30 ≥50
Crosstalk dB ≥35 ≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime Cycle ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operation Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Dimension mm (L)110×(W)95×(H)14

Route States

Low Insertion MAN 4×4 Fiber Optical Switch With High Wavelength 650-1310nm

Switch Status

Input Active Channel Output
/EN

1D1,1D0_2D1,2D0_

3D1,3D0_4D1,4D0

1S1,1S0_2S1,2S0_

3S1,3S0_4S1,4S0
0 00_01_10_11 COM 1→1 COM 2→2 COM 3→3 COM 4→4 00_01_10_11
COM 3→4 COM 4→3 00_01_11_10
00_01_11_10
00_10_01_11 COM 2→3 COM 3→2 COM 4→4 00_10_01_11
00_10_11_01 COM 3→4 COM 4→2 00_10_11_01
COM 2→4 COM 3→2 COM 4→3 00_11_01_10
00_11_01_10
COM 3→3 COM 4→2 00_11_10_01
00_11_10_01
01_00_10_11 COM 1→2 COM 2→1 COM 3→3 COM 4→4 01_00_10_11
01_00_11_10 COM 3→4 COM 4→3 01_00_11_10
01_10_00_11 COM 2→3 COM 3→1 COM 4→4 01_10_00_11
01_10_11_00 COM 3→4 COM 4→1 01_10_11_00
01_11_00_10 COM 2→4 COM 3→1 COM 4→3 01_11_00_10
01_11_10_00 COM 3→3 COM 4→1 01_11_10_00
10_00_01_11 COM 1→3 COM 2→1 COM 3→2 COM 4→4 10_00_01_11
10_00_11_01 COM 3→4 COM 4→2 10_00_11_01
10_01_00_11 COM 2→2 COM 3→1 COM 4→4 10_01_00_11
10_01_11_00 COM 3→4 COM 4→1 10_01_11_00
10_11_00_01 COM 2→4 COM 3→1 COM 4→2 10_11_00_01
10_11_01_00 COM 3→2 COM 4→1 10_11_01_00
11_00_01_10 COM 1→4 COM 2→1 COM 3→2 COM 4→3 11_00_01_10
11_00_10_01 COM 3→3 COM 4→2 11_00_10_01
11_01_00_10 COM 2→2 COM 3→1 COM 4→3 11_01_00_10
11_01_10_00 COM 3→3 COM 4→1 11_01_10_00
11_10_00_01 COM 2→3 COM 3→1 COM 4→2 11_10_00_01
11_10_01_00 COM 3→2 COM 4→1 11_10_01_00
1 x Hold Hold

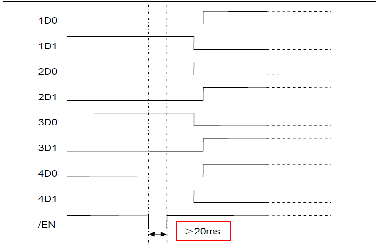

Timing Diagram

Low Insertion MAN 4×4 Fiber Optical Switch With High Wavelength 650-1310nm

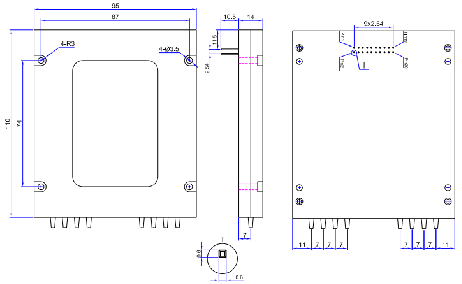

Diemensions

Low Insertion MAN 4×4 Fiber Optical Switch With High Wavelength 650-1310nm

Ordering Information:OSW－4×4－A－B－C－D－E－F－G

A B C D E F G
Mode Wavelength Voltage Control Model Fiber Diameter Fiber Length Connector

SM:9/125um

M5: 50/125um

M6: 62.5/125um

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

162: 1625nm

165: 1650nm

13/15:1310/1550nm

3: 3V

5: 5V

L: Latching

N:Non-Latching

25:250um

90:900um

20:2.0mm

30: 3.0mm

05:0.5m

10:1.0m

15:1.5m

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC

Low Insertion MAN 4×4 Fiber Optical Switch With High Wavelength 650-1310nm



Low Insertion MAN 4×4 Fiber Optical Switch With High Wavelength 650-1310nm
