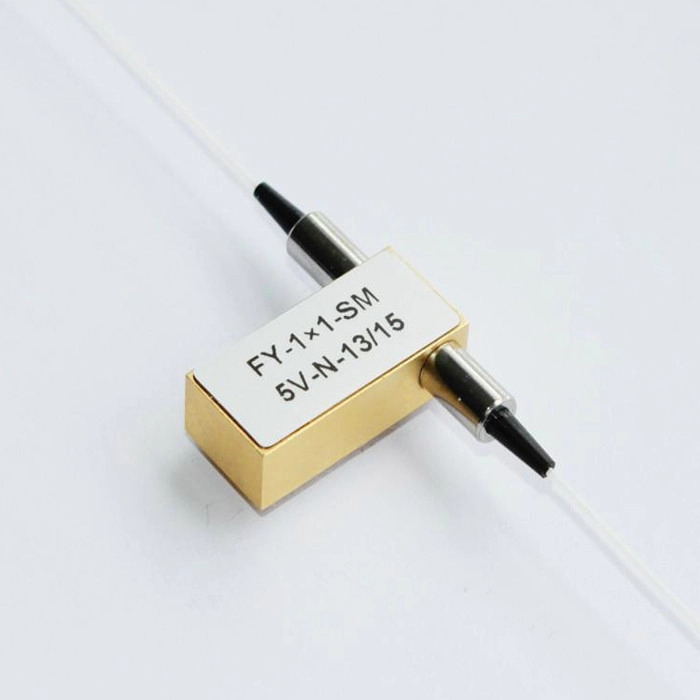

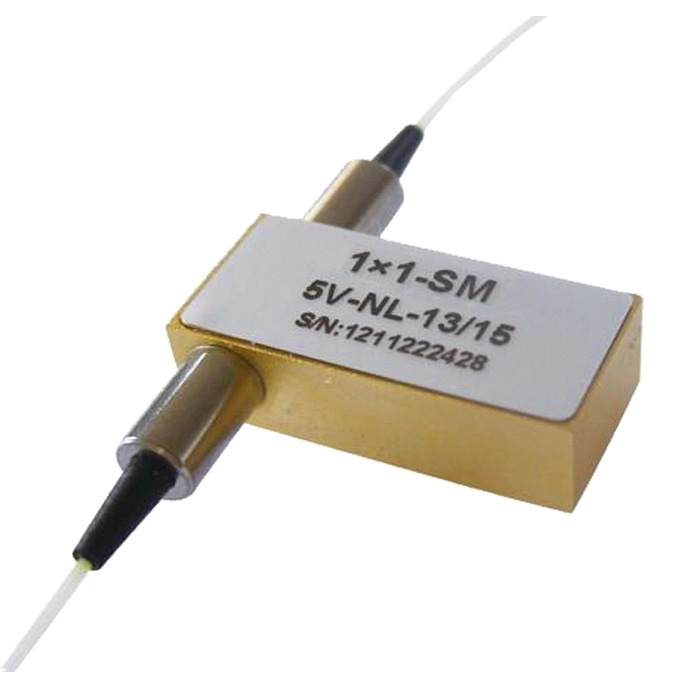

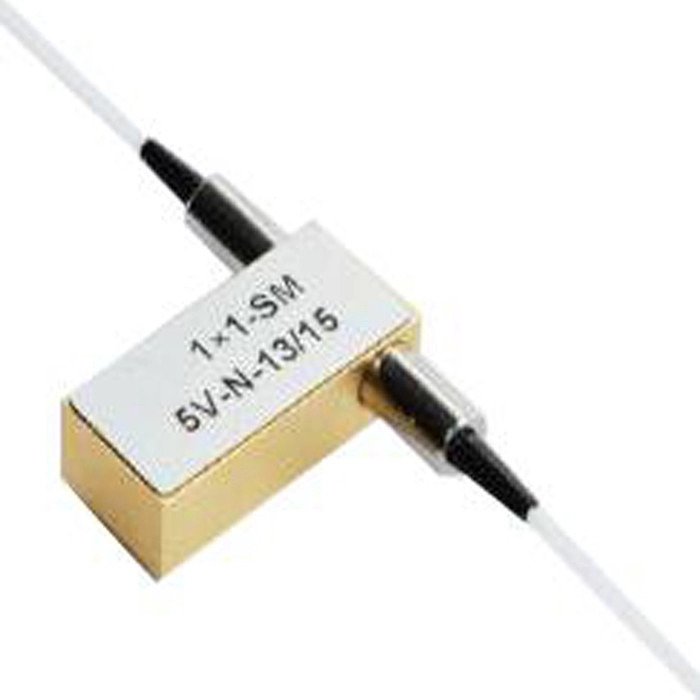

1260-1670nm 1×1 Fiber Optical Switch With Configurable OADM

  • 1
  • 2
  • 3

Brand Name : GAPHO

Model Number : 1x1 optical switch

Place of Origin : China

MOQ : 100

Price : negotiate

Payment Terms : L/C, T/T, D/A

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton

Wavelength Range : 650～1310 ;1260～1670

Testing Wavelength : 650/780/850/980/1064/1310; 1310/1490/1550/1625/1650

Insertion Loss : Typ:0.6,Max:1.0 ;Typ:0.5 ,Max:0.8

Weight : 16g

Storage Temperature : -40～+85

Operation Temperature : -40～+85

Transmission Power : ≤500

Dimension : (L)27×(W)12.6×(H)8.5(±0.2)

Contact Now

650～1310,1260～1670nm 1×1 Optical Switch,Configurable OADM,Metropolitan Area Network,with Latching and Non-latching

Application

  • Metropolitan Area Network
  • R&D in Laboratory
  • System Monitoring
  • Configurable OADM

Features

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching

Performance

Parameters OSW-1×1
Wavelength Range nm 650～1310 1260～1670
Testing Wavelength nm 650/780/850/980/1064/1310 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.6,Max:1.0 Typ:0.5 ,Max:0.8
Return Loss dB ≥30 ≥50
Crosstalk dB ≥35 ≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime Cycle ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operation Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)27×(W)12.6×(H)8.5(±0.2)

Route States

Pins

Type Optical Route Electric Drive Status Sensor
1×1 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Latching Light close -- -- GND V+ Close Open Open Close
P1-P2 V+ GND -- -- Open Close Close Open

Non

-latching

 Light close -- -- -- -- Close Open Open Close
P1-P2 V+ -- -- GND Open Close Close Open

Electrical parameters

Voltage current Resistor
5V Latching 4.5~5.5 36~44mA 125Ω
5V Non-Latching 4.5~5.5 26~32mA 175Ω
3V Latching 2.7~3.3 54~66mA 50Ω
3V Non-Latching 2.7~3.3 39~47mA 70Ω

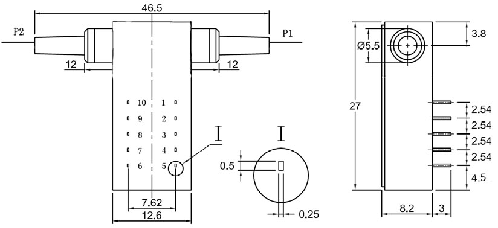

Dimensions

1260-1670nm 1×1 Fiber Optical Switch With Configurable OADM

Ordering Information:OSW－1×1－A－B－C－D－E－F－G

A B C D E F G
Mode Wavelength Voltage Control Model Fiber Diameter Fiber Length Connector

SM:9/125um

M5: 50/125um

M6: 62.5/125um

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

162: 1625nm

165: 1650nm

13/15:1310/1550nm

3: 3V

5: 5V

L: Latching

N:Non-Latching

25:250um

90:900um

20:2.0mm

30: 3.0mm

05:0.5m

10:1.0m

15:1.5m

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC
