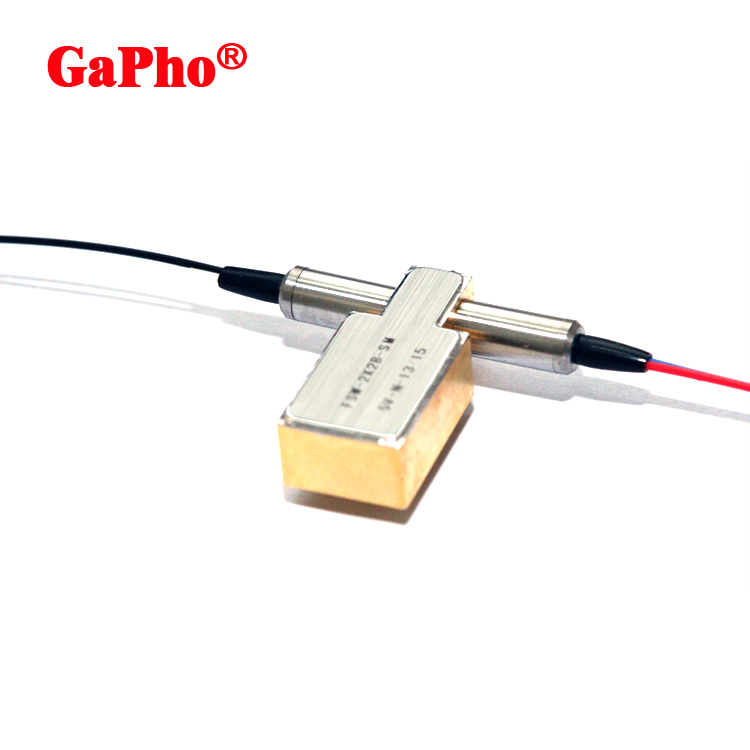

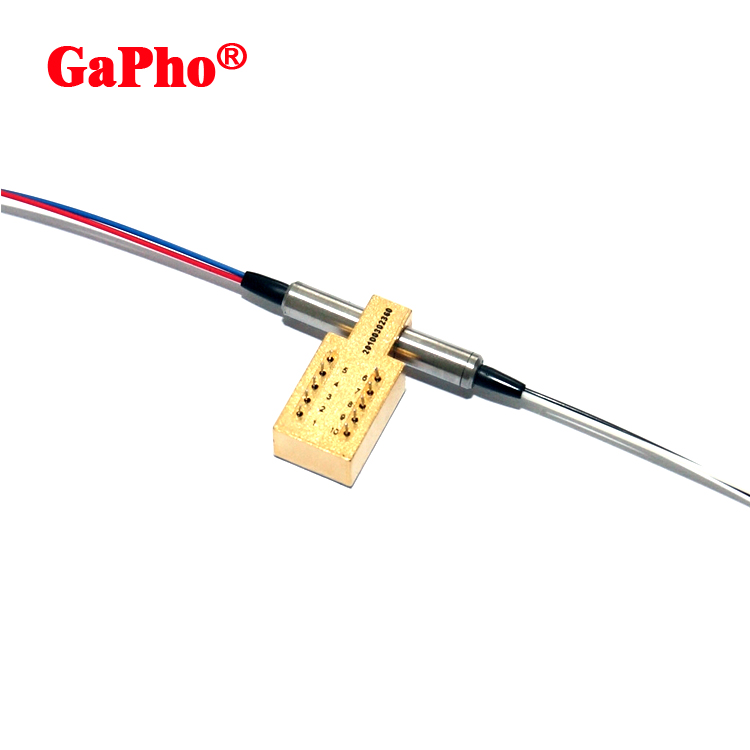

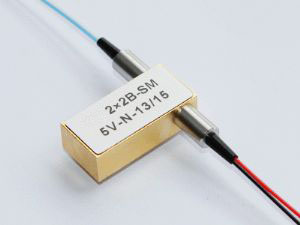

Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM

Brand Name : GAPHO

Model Number : 2×2Bypass Optical Switch

Place of Origin : China

MOQ : 100

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton

Dimension : (L)27×(W)12.6×(H)8.5(±0.2)

Weight : 16g

Storage Temperature : -40 ~ +85 ℃

Operation Temperature : -40～+85

Transmission Power : ≤500

Power supply : 3.3 or 5.0 v

Repeatability : ≤±0.02

TDL : ≤0.25

WDL : ≤0.25

PDL : ≤0.05

Contact Now

2×2 Bypass Optical Switch for Metropolitan Area Network R&D in Laboratory ,System Monitoring , Configurable OADM

◇Description:

2X2 Bypass Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.The 2X2 Opto-Mechanical Bypass Optical Switches consists of 2 input and 2 output fiber ports that selectively transmits, redirects, or blocks optical power in a fiber optic transmission line.2X2 Bypass optical switches is designed for use in optical fiber communication networks and measurement instruments.

◇Features

 Low Insertion Loss

 Wide Wavelength Range

 Low Crosstalk

 High Stability, High Reliability

 Epoxy-free on Optical Path

 Latching and Non-latching

◇ Application
 Metropolitan Area Network
 R&D in Laboratory
 System Monitoring
 Configurable OADM

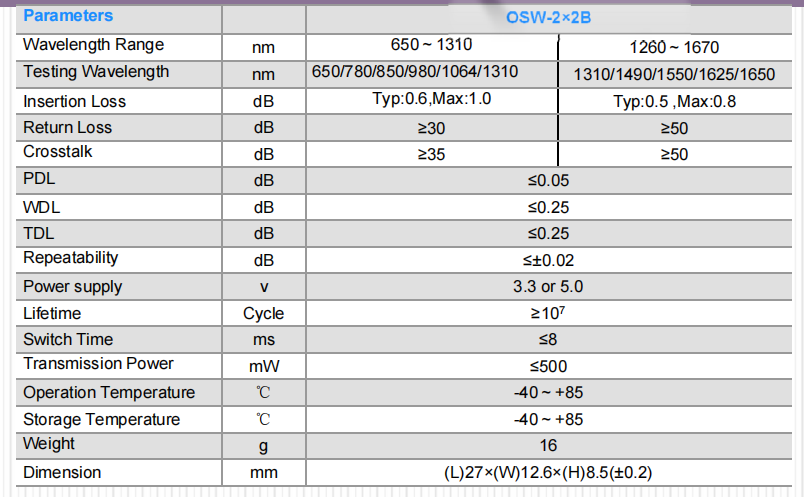

◇Performanace
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM

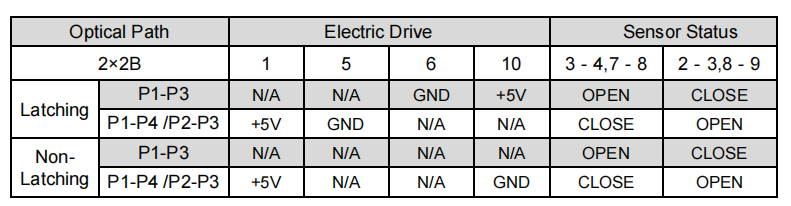

◇Route States
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM
◇Pins
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM

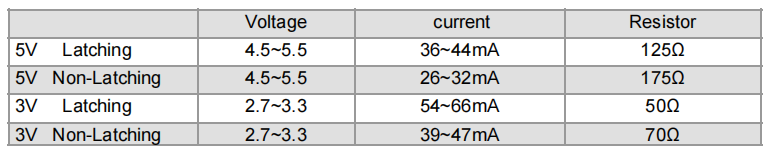

◇Electrical parameters
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM

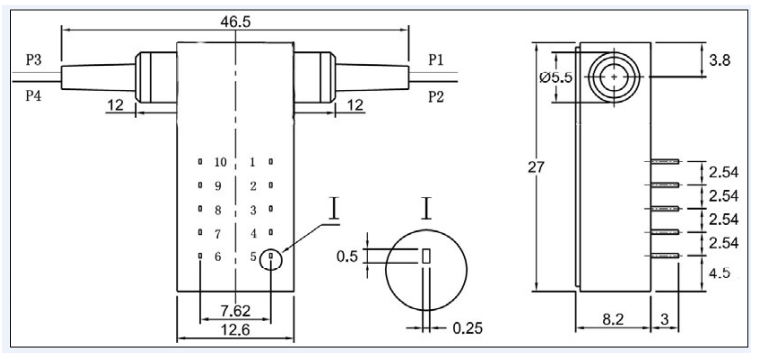

◇Dimensions
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM

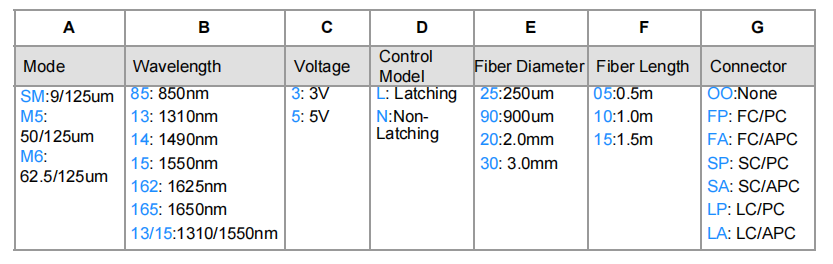

◇ Ordering Information:OSW－2×2B－A－B－C－D－E－F－G
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM
Metropolitan Area Network 2×2 Optical Bypass Switch For Configurable OADM
