High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test

Brand Name : GAPHO

Model Number : 1×2L Mechanical Optical Switch

Place of Origin : China

MOQ : 100

Price : negotiate

Payment Terms : T/T

Supply Ability : 5000

Delivery Time : 7-10 day

Packaging Details : Carton

Wavelength Range : 850;1260~1650

OperatingWavelength : 850 ;1310/1490/1550/1625/1650

Insertion Loss : Typ:0.8 Max:1.2 ; Typ:0.5 Max:0.8

Return Loss : MM≥30 SM≥50

Crosstalk : MM≥35 SM≥55

Switch Time : ≤8

Transmission Power : ≤500

OperatingTemperature : -20~+70

Storage Temperature : -40~+85

Dimension : (L)22.5×(W)12×(H)10.5(±0.2)

Contact Now

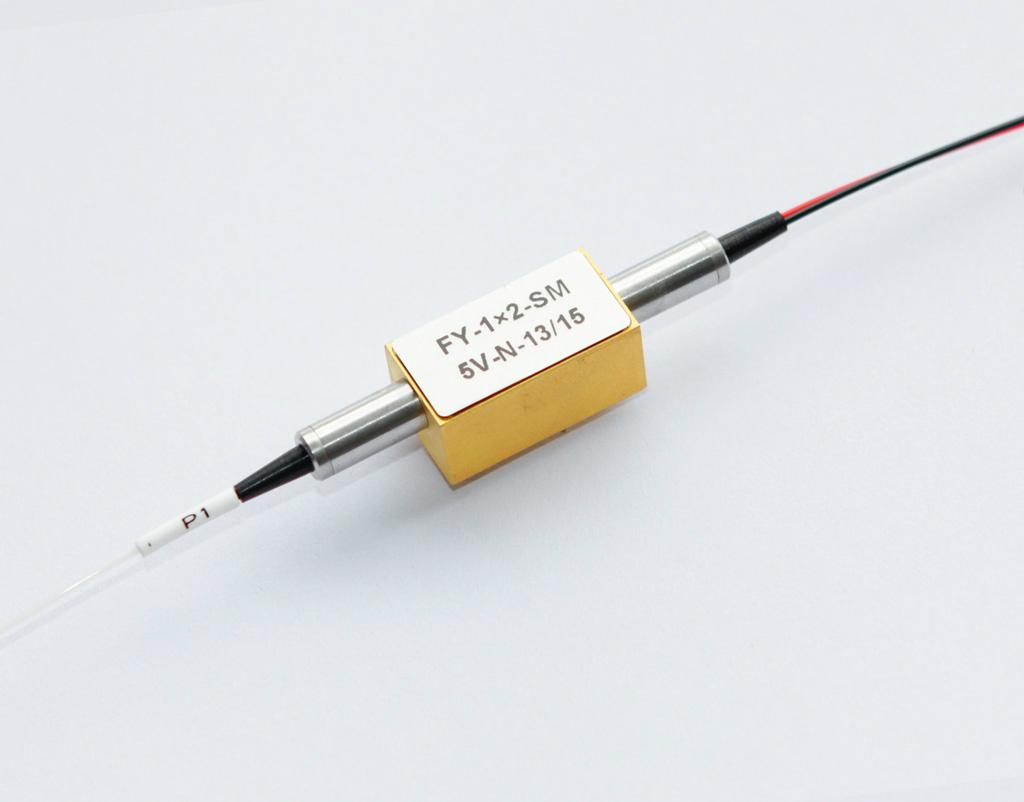

1×2L Mechanical Optical Switch

Description:

1x2L Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.and 1x2L Mechanical Optical Switch support all wavelength at 1260nm~1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features
  • Unmatched Low Cost
  • Low insertion Loss
  • High Channel Isolation
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching or Non-latching
Applications
  • Optical Network
  • tection/Restoration
  • Optical Singnal Routing
  • Configurable Optical Add/Drop
  • Transmitter and receiver protection
  • Network Test
Performance
Parameters FY-1 x2L
Wavelength Range nm 850 1260-1650
Operating Wavelength nm 850 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:0.8
Return Loss dB MM≥30 SM≥55
Crosstalk dB

MM >35 SM>55
PDL dB <0.05
WDL dB <0.25
TDL dB <0.25
Repeatability dB <±0.02
Power supply V 3.0 or 5.0
Lifetime Time >107
Switch Time ms <8
Transmission Power mW <500
Operating Temperature
℃
 -20〜+70
Storage Temperature
℃
 40〜+85
Dimension mm (L)22.5x(W)12x(H)10.5(±0.2)

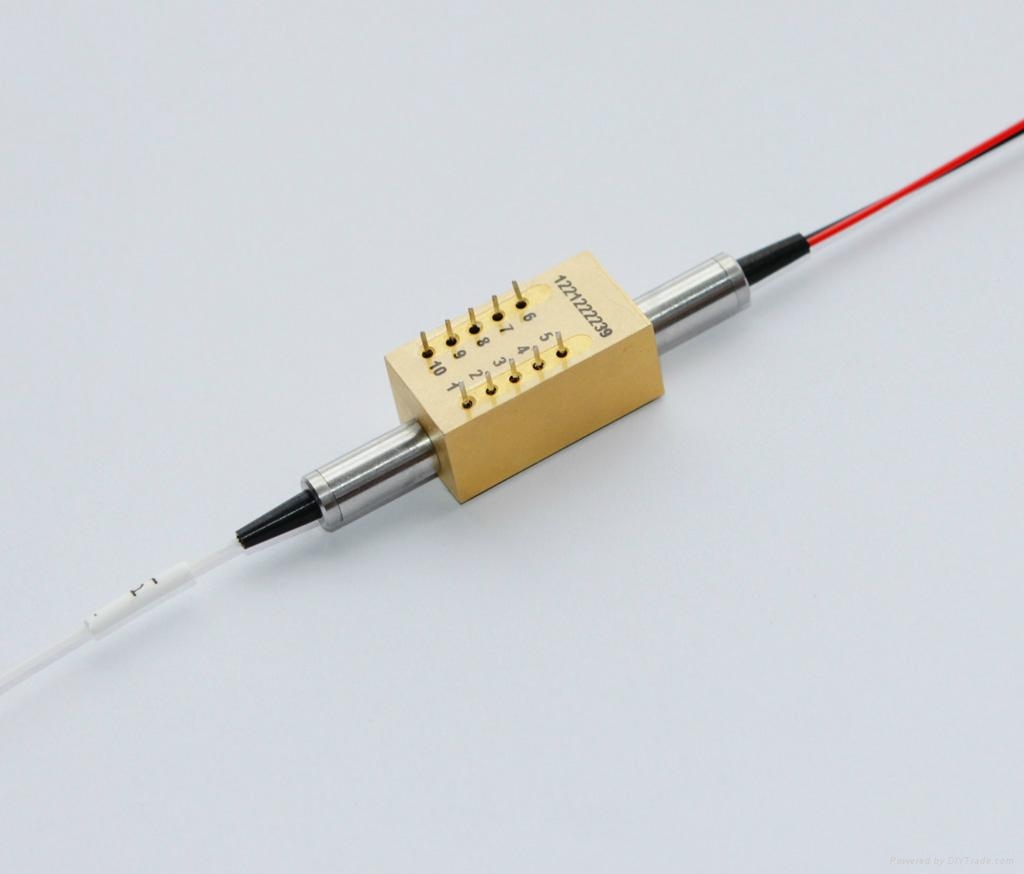

Pins
High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test

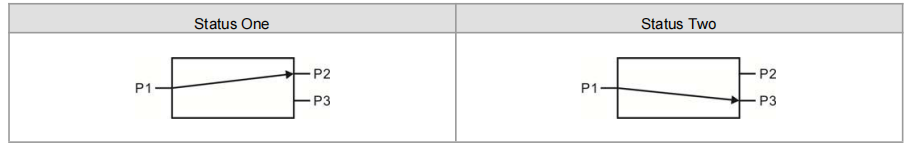

Optical Route
High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test

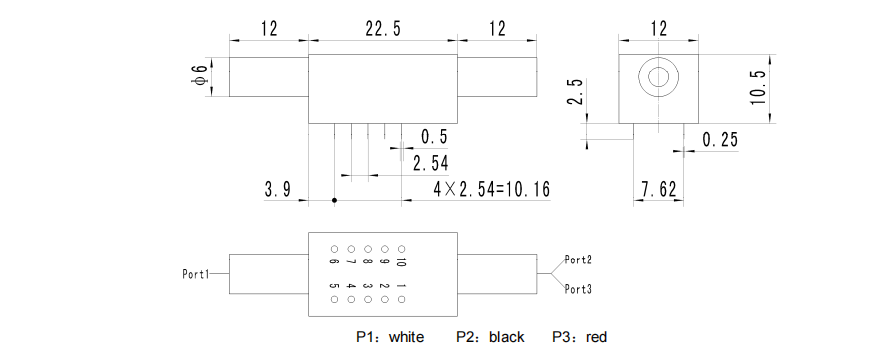

Dimension
High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test

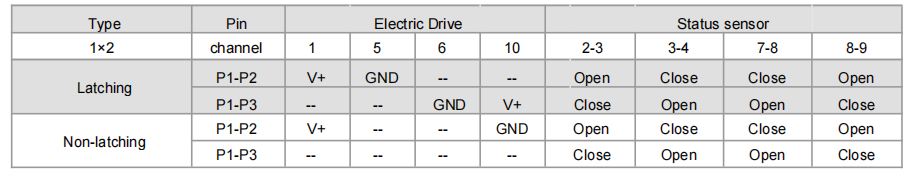

Electric
High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test

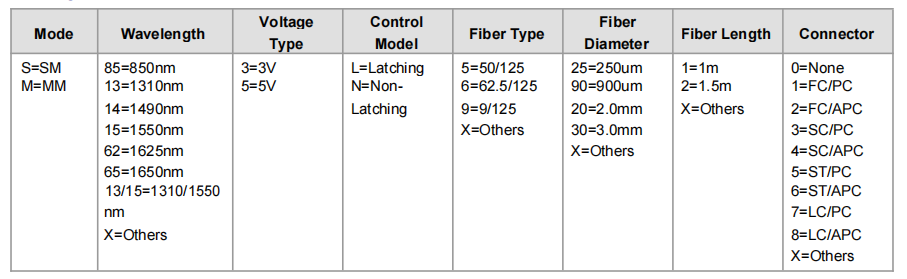

Ordering Information
High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test
High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test
High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test
High Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network TestHigh Channel Isolation 1260-1650 1×2L Mechanical Optical Switch For Network Test
