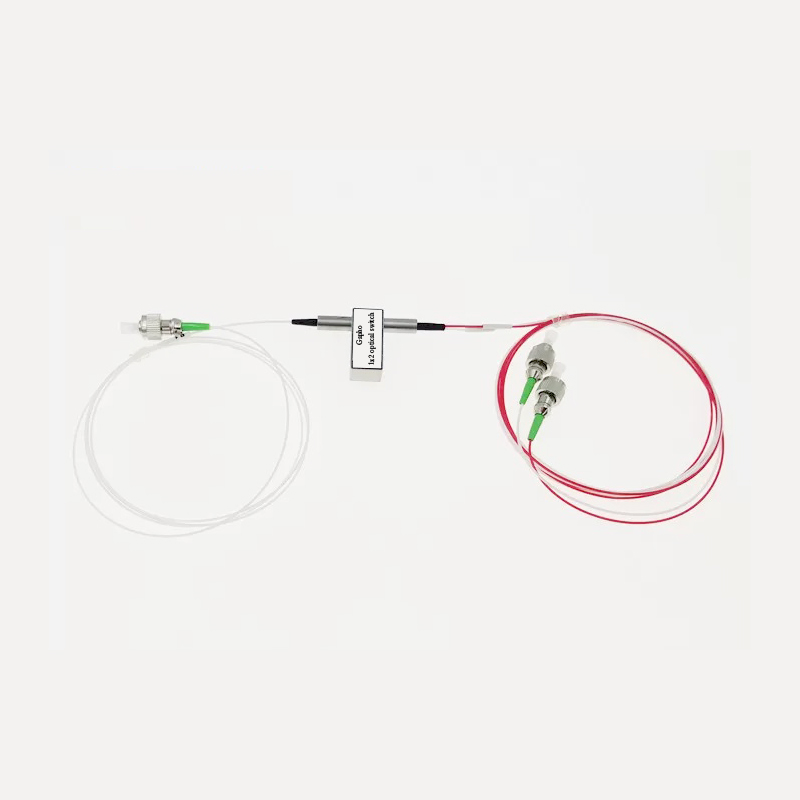

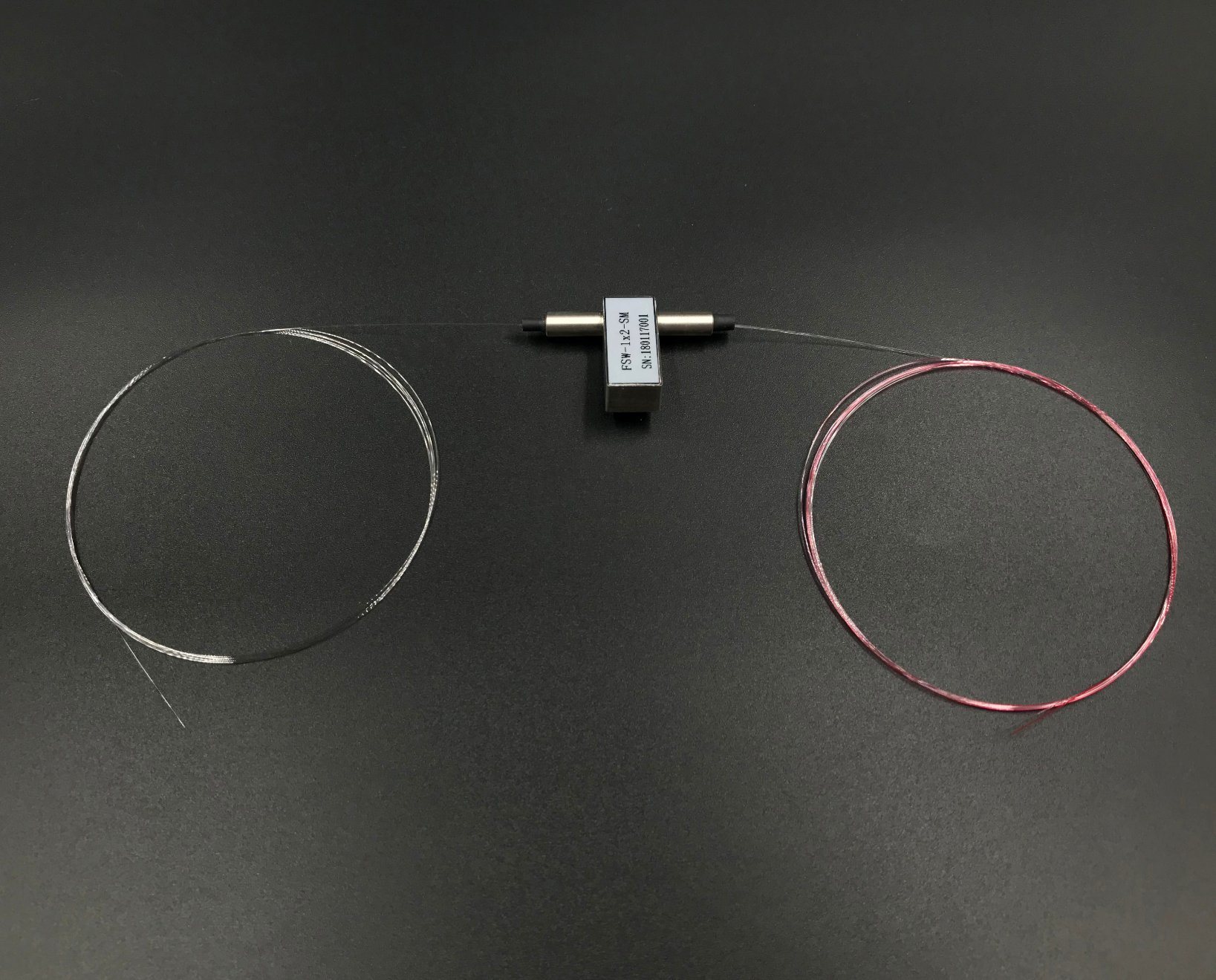

Low Crosstalk D1×2 Fiber Optical Switch 980nm Epoxy Free Path

Brand Name : GAPHO

Model Number : D1×2 Optical Switch

Place of Origin : China

MOQ : 100

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton

Wavelength Range : 650～1310; 1260～1670

Testing Wavelength : 650/780/850/980/1064/1310; 1310/1490/1550/1625/1650

Insertion Loss : Typ:0.6,Max:1.0; Typ:0.5 ,Max:0.8

Operation Temperature : -40～+85

Storage Temperature : -40～+85

Weight : 16g

ConneDimensionctor : (L)27×(W)12.6×(H)8.5(±0.2)

Contact Now

Dual 1×2 Optical Switch,R&D in Laboratory,Configurable OADM,R&D in Laboratory,with Epoxy-free on Optical Path

◇Description:

OSW-D1X2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27×(W)12.6×(H)8.5(±0.2)mm. It is an ideal component for OADM,R&D in Laboratory,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

◇Features

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching

◇ Application

  • Metropolitan Area Network
  • R&D in Laboratory
  • System Monitoring
  • Configurable OADM

◇ Performance

Parameters OSW-D1×2
Wavelength Range nm 650～1310 1260～1670
Testing Wavelength nm 650/780/850/980/1064/1310 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.6,Max:1.0 Typ:0.5 ,Max:0.8
Return Loss dB ≥35 ≥50
Crosstalk dB ≥40 ≥50
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime Cycle ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operation Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)27×(W)12.6×(H)8.5(±0.2)

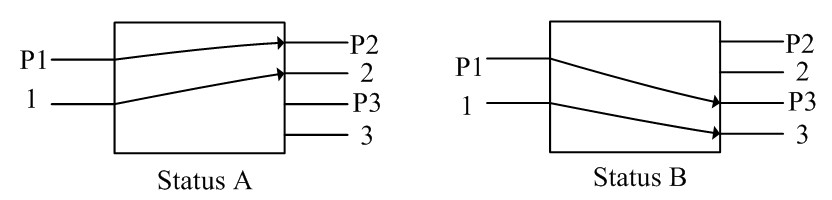

◇ Route States

Low Crosstalk D1×2 Fiber Optical Switch 980nm Epoxy Free Path

◇ Pins

Optical Path Electric Drive Sensor Status
D1×2 1 5 6 10 3－4,7－8 2－3,8－9
Latching P1-P2,1-2 N/A N/A GND +5V OPEN CLOSE
P1-P3,1-3 +5V GND N/A N/A CLOSE OPEN

Non-

Latching

 P1-P2,1-2 N/A N/A N/A N/A OPEN CLOSE
P1-P3,1-3 +5V N/A N/A GND CLOSE OPEN

◇ Electrical parameters

Voltage current Resistor
5V Latching 4.5~5.5 36~44mA 125Ω
5V Non-Latching 4.5~5.5 26~32mA 175Ω
3V Latching 2.7~3.3 54~66mA 50Ω
3V Non-Latching 2.7~3.3 39~47mA 70Ω

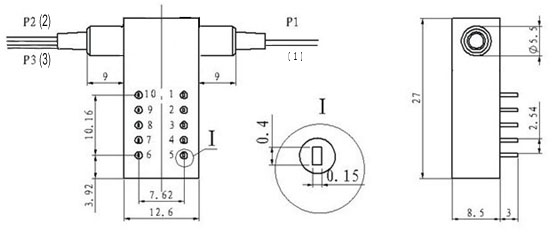

◇ Dimensions

Low Crosstalk D1×2 Fiber Optical Switch 980nm Epoxy Free Path

◇ Ordering Information:OSW－D1×2－A－B－C－D－E－F－G

A B C D E F G
Mode Wavelength Voltage Control Model Fiber Diameter Fiber Length Connector

SM:9/125um

M5: 50/125um

M6: 62.5/125um

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

162: 1625nm

165: 1650nm

13/15:1310/1550nm

3: 3V

5: 5V

L: Latching

N:Non-Latching

25:250um

90:900um

20:2.0mm

30: 3.0mm

05:0.5m

10:1.0m

15:1.5m

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC
