Low Insertion Loss 1×1 Fiber Optical Switch 850 / 1310nm For OADM

  • 1
  • 2
  • 3

Brand Name : GAPHO

Model Number : 1×1 Optical switch

Place of Origin : China

MOQ : 100

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000

Delivery Time : 7-10 day

Packaging Details : Carton

Dimension : (L)27.0×(W)12.0×(H)8.2 ±0.2 or Customer design

Weight : 14g

Storage Temperatur : -40 ~ +85

Operating Temperature : -20 ~ +70

Optical Power : ≤500

Place of origin : Shenzhen.China

Wavelength Range : 850±40 / 1300±40 ;1260 ~ 1650

Test Wavelength : 850 / 1300; 1310 / 1550

Contact Now

Description:

1×1 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27×(W)12.6×(H)8.5(±0.2)mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

Features

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching

Application

  • Metropolitan Area Network
  • R&D in Laboratory
  • System Monitoring
  • OADM
  • MAN (Metropolitan Area Network)

Specifications

Parameters Unit TZ-FSW-1×2
Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650
Test Wavelength nm 850 / 1300 1310 / 1550
Insertion Loss 1, 2 dB Typ:0.5 Max:0.8 Type:0.4 Max:0.6
Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50
Crosstalk 1 dB MM ≥ 65 SM ≥ 70
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Weight g 14
Dimension mm (L)27.0×(W)12.0×(H)8.2 ±0.2 or Customer design

Note: 1 Within operating temperature and SOP.

2Excluding Connectors.

Pin Configurations

Type State Optical Route Electric Drive Status Sensor
1×1 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Latching A Light close --- --- GND V+ Close Open Open Close
B P1-P2 V+ GND --- --- Open Close Close Open

Non-

latching

 A Light close --- --- --- --- Close Open Open Close
B P1-P2 V+ --- --- GND Open Close Close Open

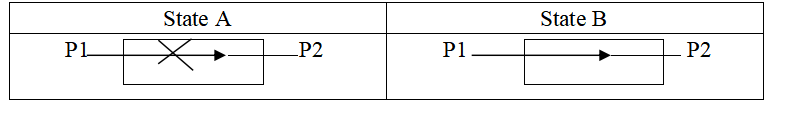

Optical Route

Low Insertion Loss 1×1 Fiber Optical Switch 850 / 1310nm For OADM

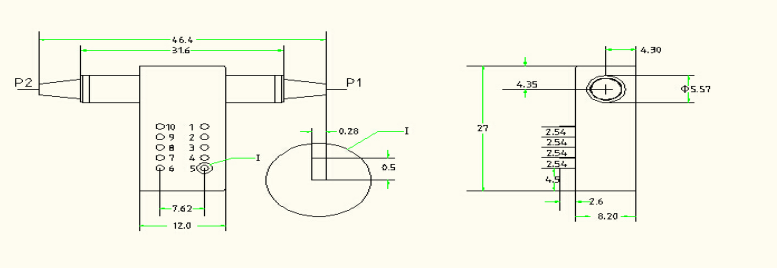

Dimension

Low Insertion Loss 1×1 Fiber Optical Switch 850 / 1310nm For OADM

Electrical Specificatiion

Specifications Voltage Current Resistance
5V latching 4.5~5.5 V 36~44 mA 125 Ω
5V Non-latching 4.5~5.5 V 26~32 mA 175 Ω
3V latching 2.7~3.3 V 54~66 mA 50 Ω
3V Non-latching 2.7~3.3 V 39~47 mA 70 Ω
Ordreing information
Fiber Type Voltage Switch type Test Wavelength TubeType Fiber length Connector
SM:SM,9/125 3:3V L:Latching 850:850nm 25:250um 05:0.5m±5cm FP:FC/PC,FA:FC/APC
M5:MM,50/125 1310:1310nm 90:90um 10:1.0m±5cm SP:SC/PC,SA:SC/APC
M6:MM,62.5/125 5:5V N:Non-latching 13/15:1310/1550nm X:Others 15:1.5m±5cm LP:LC/PC,LA:LC/APC
X: Others X:Others X:Others OO:None,X:Others

Low Insertion Loss 1×1 Fiber Optical Switch 850 / 1310nm For OADM

Low Insertion Loss 1×1 Fiber Optical Switch 850 / 1310nm For OADM

Low Insertion Loss 1×1 Fiber Optical Switch 850 / 1310nm For OADM
