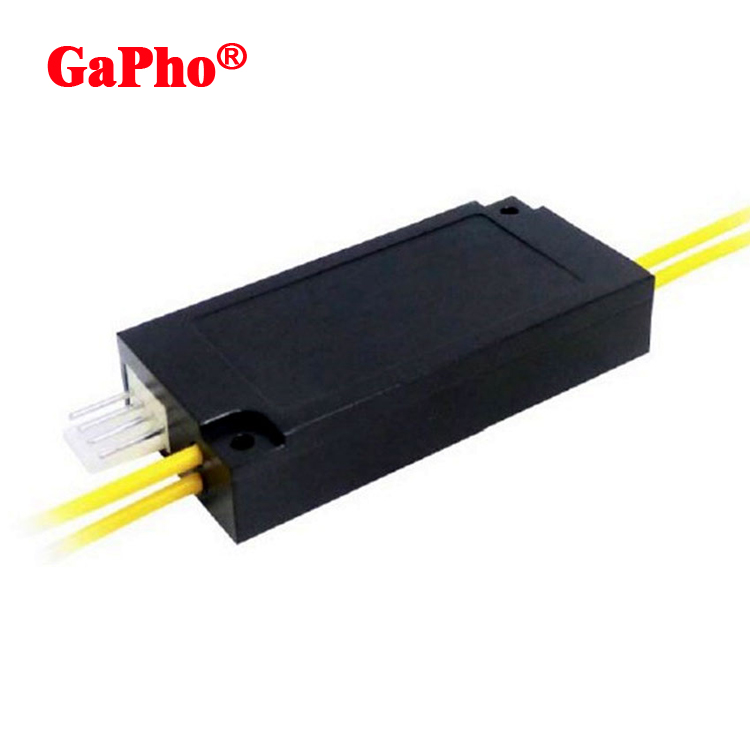

2×2 A Optical Switch,for Configurable OADM/System Monitoring with Low Insertion Loss+Wide Wavelength Range

Description:

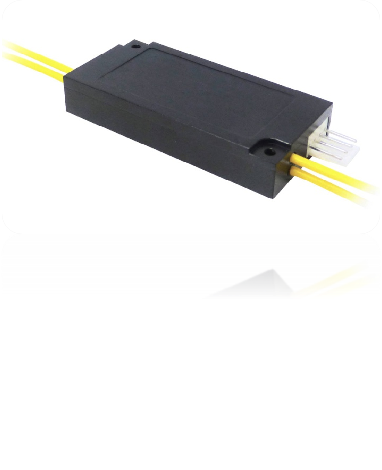

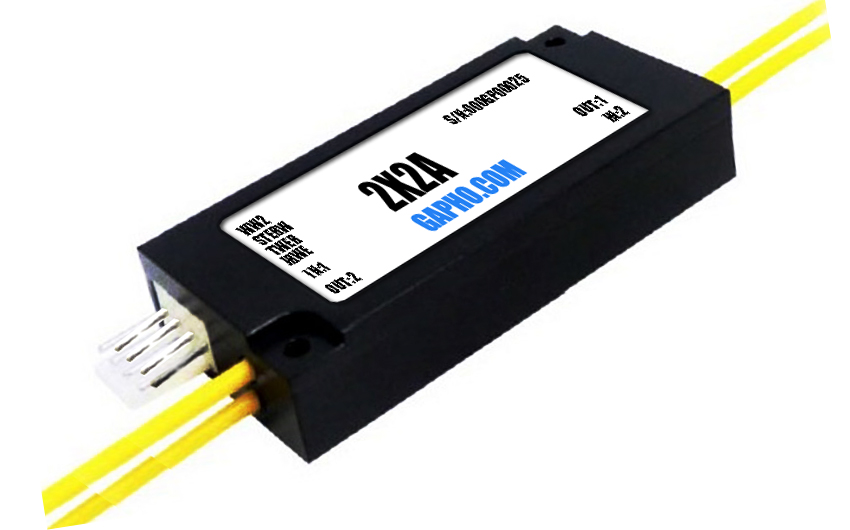

2X2A Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55×(W)30×(H)12.8(±0.2)mm. It is an ideal component for OADM,R&D in Laboratory,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

Features

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching

Application

  • Metropolitan Area Network
  • R&D in Laboratory
  • System Monitoring
  • Configurable OADM

Performance:

Parameters OSW-2×2A
Wavelength Range nm 650～1310 1260～1670
Testing Wavelength nm 650/780/850/980/1064/1310 1310/1490/1550/1625/1650
Insertion Loss dB Typ:1.0,Max:1.2 Typ:0.8,Max:1.0
Return Loss dB ≥30 ≥50
Crosstalk dB ≥35 ≥50
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.45
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime Cycle ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operation Temperature ℃ -30～+85
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)55×(W)30×(H)12.8(±0.2)

Route States

Configurable OADM 2×2A 650nm Fiber Optical Switch With Low Crosstalk

Pins

Control Model Electric Drive Status Sensor Optical Route
Pin 1 Pin 2 Pin3- Pin4
Latching V+ GND Open P1-P3,P2-P4 Configurable OADM 2×2A 650nm Fiber Optical Switch With Low Crosstalk
GND V+ Close P1-P4,P2-P3 Configurable OADM 2×2A 650nm Fiber Optical Switch With Low Crosstalk
Non-latching V+ GND Close P1-P3,P2-P4 Configurable OADM 2×2A 650nm Fiber Optical Switch With Low Crosstalk
- - Open P1-P4,P2-P3 Configurable OADM 2×2A 650nm Fiber Optical Switch With Low Crosstalk

Electrical parameters

Voltage current Resistor
5V Latching 4.5~5.5 36~44mA 125Ω
5V Non-Latching 4.5~5.5 26~32mA 175Ω
3V Latching 2.7~3.3 54~66mA 50Ω
3V Non-Latching 2.7~3.3 39~47mA 70Ω

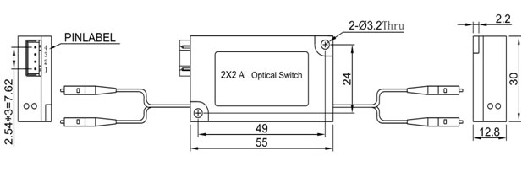

Dimensions:

Configurable OADM 2×2A 650nm Fiber Optical Switch With Low Crosstalk

Ordering Information:OSW－2×2A－A－B－C－D－E－F－G

A B C D E F G
Mode Wavelength Voltage Control Model Fiber Diameter Fiber Length Connector

SM:9/125um

M5: 50/125um

M6: 62.5/125um

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

162: 1625nm

165: 1650nm

13/15:1310/1550nm

3: 3V

5: 5V

L: Latching

N:Non-Latching

25:250um

90:900um

20:2.0mm

30: 3.0mm

05:0.5m

10:1.0m

15:1.5m

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC

Configurable OADM 2×2A 650nm Fiber Optical Switch With Low Crosstalk

Configurable OADM 2×2A 650nm Fiber Optical Switch With Low Crosstalk
