MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring

Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

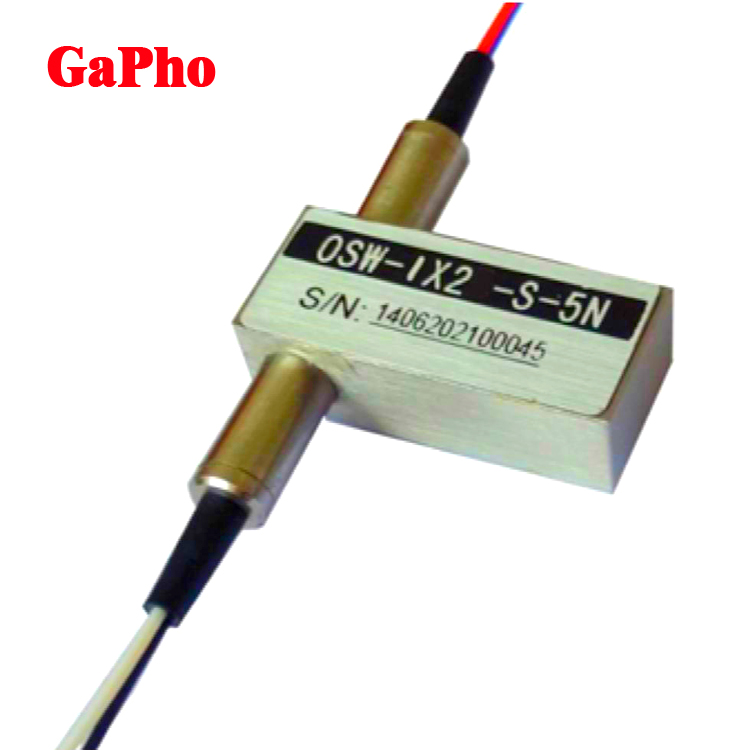

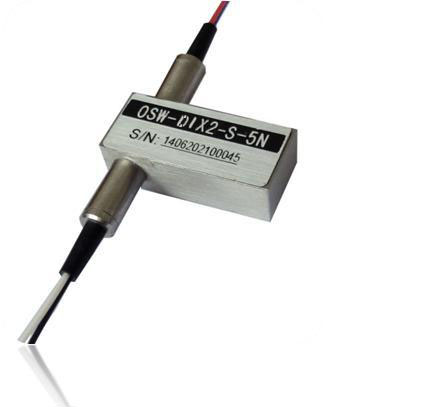

MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring

Brand Name : GAPHO

Model Number : OSW1×2T Optical Switch

Place of Origin : China

MOQ : 100

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton

Wavelength Range : 850±40 / 1300±40 ;1260 ~ 1650 nm

Test Wavelength : 850 / 1300 ;1310 / 1550 nm

Insertion Loss : Typ: 0.6 Max: 1.0 ;Typ: 0.6 Max: 1.0

Return Loss : MM ≥ 30 ;SM ≥ 50

Crosstalk : MM ≥ 35 ;SM ≥ 55

Switching Time : ≤8 ms

Operating Temperature : -5 ~ +70 ℃

Storage Temperature : -40 ~ +85 ℃

Relative Humidity : 5 %~ 95 %

Weight : 14g

Dimension : (L)27.0×(W)12.0×(H)8.2 ±0.2 mm

Contact Now

OSW1×2T Optical Switch,System Monitoring,R&D in Laboratory,MAN (Metropolitan Area Network),with Wide Wavelength Range
Description:
OSW1×2T Optical Switch, which is famous for its high performance, low insertion loss and compact
dimension: (L)27.0×(W)12.0×(H)8.2mm. It is an ideal Component for OADM,OXC,system monitoring
and protection. With compact package, it can be easy to integrate into a high density optical
communication system.
Features:
  • ·Low Insertion Loss
  • ·Wide Wavelength Range
  • ·Low Crosstalk
  • ·High Stability, High Reliability
  • ·Epoxy-free on Optical Path
  • ·Latching and Non-latching
Applications:
  • ·R&D in Laboratory
  • ·System Monitoring
  • ·OADM
  • ·MAN (Metropolitan Area Network)

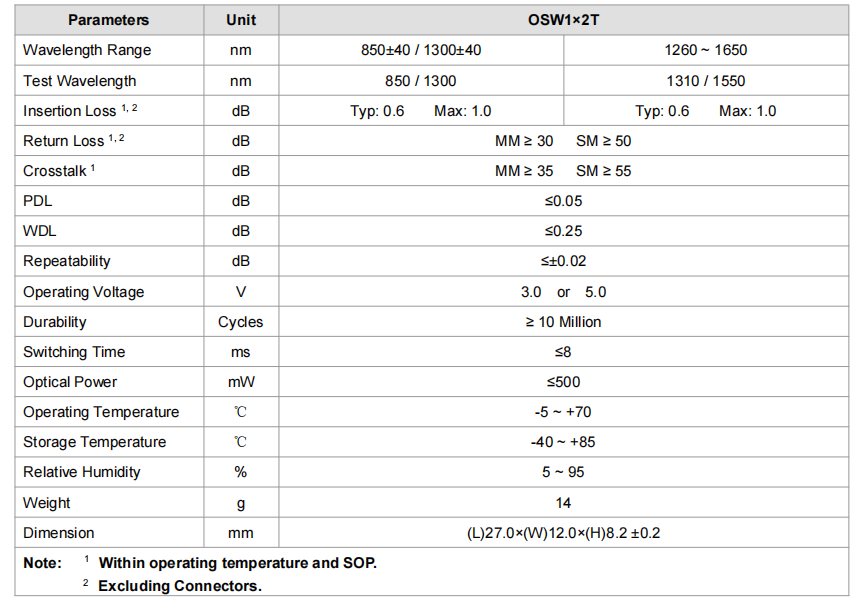

Specificatiions:
MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring

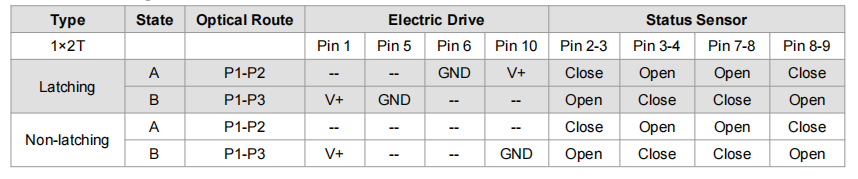

Pin Cinfigurations:
MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring

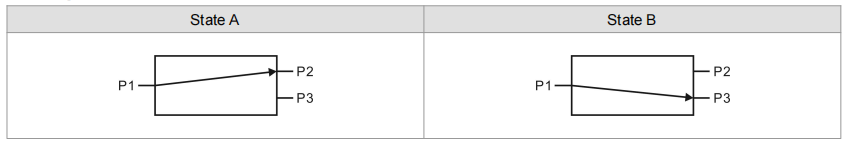

Optical Route:
MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring

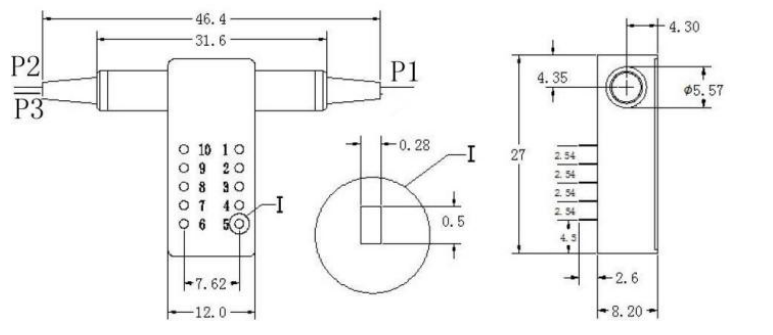

Dimension:
MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring

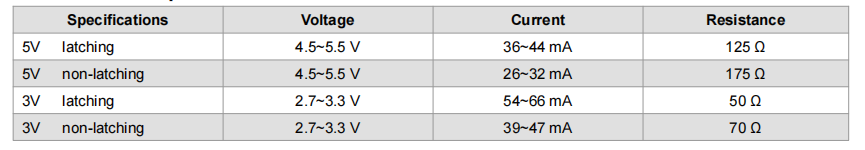

Electrical Specification:
MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring

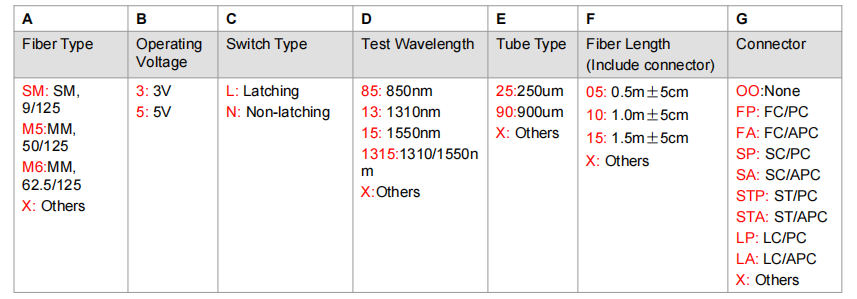

Ordering information:
MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring
MAN OSW1×2T Fiber Optical Switch 1260-1650nm For System MonitoringMAN OSW1×2T Fiber Optical Switch 1260-1650nm For System MonitoringMAN OSW1×2T Fiber Optical Switch 1260-1650nm For System MonitoringMAN OSW1×2T Fiber Optical Switch 1260-1650nm For System Monitoring
