1×2 High Performance Mechanical Optical Fiber Switch Multi Mode With Low Insertion Loss

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

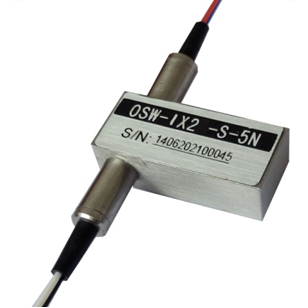

1×2 High Performance Mechanical Optical Fiber Switch Multi Mode With Low Insertion Loss

  • 1
  • 2
  • 3

Brand Name : GAPHO

Model Number : 1×2 Multi-Mode Optical switch

MOQ : 50

Price : 25USD

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 5-10 day

Packaging Details : 2/PCS Ziplock bag packaging

Wavelength Range : 650~1310

Test Wavelength : 650/780/850/980/1064/1310

Insertion Loss 1, 2 : Type:0.6 Max:1.0

Return Loss 1, 2 : SM ≥ 30

Crosstalk 1 : SM ≥ 35

Operating Temperature : -20 ~ +70

Storage Temperature : -40 ~ +85

Relative Humidity : 5 ~ 95

Name : 2x1 optical switch with Redundancy

Power supply : 24v DC(12v-36v DC)

Contact Now

1×2 Multi-Mode Optical switch

Features

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching

Applications

  • R&D in Laboratory
  • System Monitoring
  • OADM
  • MAN (Metropolitan Area Network)

Specifications

Parameters Unit TZ-FSW-1×2
Wavelength Range nm 650~1310
Test Wavelength nm 650/780/850/980/1064/1310
Insertion Loss 1, 2 dB Type:0.6 Max:1.0
Return Loss 1, 2 dB SM ≥ 30
Crosstalk 1 dB SM ≥ 35
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Weight g 14
Dimension mm (L)27.0×(W)12.6×(H)8.5 ±0.2

Note: 1 Within operating temperature and SOP.

2Excluding Connectors.

Pin Configurations

1×2 High Performance Mechanical Optical Fiber Switch Multi Mode With Low Insertion Loss

Type State Optical Route Electric Drive Status Sensor
1×2 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Latching A P1-P2 V+ GND --- --- Open Close Close Open
B P1-P3 --- --- GND V+ Close Open Open Close

Non-

latching

 A P1-P2 --- --- --- --- Open Close Close Open
B P1-P3 --- GND V+ --- Close Open Open Close

Electrical Specification

Specifications Voltage Current Resistance
5V latching 4.5~5.5 V 36~44 mA 125 Ω
5V Non-latching 4.5~5.5 V 26~32 mA 175 Ω
3V latching 2.7~3.3 V 54~66 mA 50 Ω
3V Non-latching 2.7~3.3 V 39~47 mA 70 Ω

1×2 High Performance Mechanical Optical Fiber Switch Multi Mode With Low Insertion Loss Ordering Information

Fiber Type Voltage Switch type Test Wavelength TubeType Fiber length Connector

M5:MM,

50/125

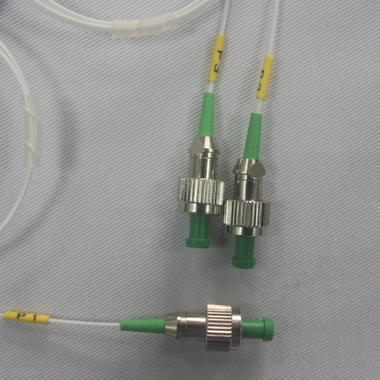

 3:3V L:Latching 65:650nm 78:780nm 25:250um 05:0.5m±5cm FP:FC/PC,FA:FC/APC
85:850nm 98:980nm 90:90um 10:1.0m±5cm SP:SC/PC,SA:SC/APC
M6:MM,62.5/125 5:5V N:Non-latching 1064:1064nm 20:2.0mm 15:1.5m±5cm LP:LC/PC,LA:LC/APC
X: Others 13:1310nm 30:3.0mm X:Others OO:None,X:Others

1×2 High Performance Mechanical Optical Fiber Switch Multi Mode With Low Insertion Loss

1×2 High Performance Mechanical Optical Fiber Switch Multi Mode With Low Insertion Loss
