50 / 50 is 1m longer than 1x2 FBT fiber coupler splitter, connected to SC / APC connector

Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

50 / 50 is 1m longer than 1x2 FBT fiber coupler splitter, connected to SC / APC connector

Brand Name : GaPho

Model Number : 50:50

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Operating Wavelength : 1310 or 1550

Return Loss : ≧50.00

Operating Temperature : -20 ~+70

Contact Now

50 / 50 is 1m longer than 1x2 FBT fiber coupler splitter, connected to SC / APC connector
1. Features:
Low Insertion
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Temperature: -40°C - 85°C
2. Applications:
Tight and fine structure
High reliability and directivity
Non-sensitive wavelength
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength

1. Features:

  • Low Insertion loss
  • Wide Operating Wavelength
  • Compact Size
  • Excellent Environmental & Mechanical Stability

2. Applications:

1. FTTX Systems
2. LAN, WAN and Metro Networks
3. Analog/Digital Passive Optical Networks
4. CATV Networks CATV
5. Subscriber Loop
6. Fiber Sensors
7.Fiberoptic Instruments
8. Other applications in fiber optic systems
2. Applications:

Coupling Ratio(%) 1∽50
Directivity (dB) ≥55 dB
Operating Temperature (°C) -40℃-85℃
Storage Temperature (°C) -40℃-85℃
Fiber Type Corning Single mode SMF-28,DS Fiber or Flexcore
Fiber Pigtail Length (m) 1meter
Port Configuration 1×2, 2x2 or 1×4
Package Dimension Package M, A, B, C

Single mode Standard Coupler
Grade P Grade A Grade
Coupling Ratio (%) 50/50 50/50
Excess Loss (Typical )(dB) 0.1 0.15
Maximum Insertion loss (dB) 3.4 3.5
PDL(dB) 0.1 0.15
Operating Wavelength(nm) 850,980,1310,1480,1550,1585 or customized



Single mode Wideband Coupler
Grade P Grade A Grade
Coupling Ratio (%) 50/50 50/50
Excess Loss (Typical )(dB) 0.1 0.2
Maximum Insertion loss (dB) 3.4 3.5
PDL(dB) 0.1 0.15
Operating Wavelength(nm) 1310±40,1550±40,1585±40 or customized


Type SSSC,SSWC
Grade P,A,S
Wavelength

83=830nm
85=850nm
98=980nm
13=1310nm
14=1490nm
15=1550nm
16=1610nm

Coupling Ratio or Attenuation

50=50/50
30=30/70
10=10/90
05=5/95
01=1/99

Port

0102=1×2
0202=2×2
0104=1×4

Package M=Package M,N=Package N,A=Package A, B=Package B,C=Package C
Pigtail Style 1=Bare Fiber,2=900umJacket,3=3mmCable
Fiber Type

0=SMF-28
1=Corning Flexcore 1060
2=Corning Flexcore 780mm
D=DS Fiber
S=Special

Connector 连 0=None,1=FC/APC,2=FC/PC,3=SC/APC, 4=SC/PC,5=ST,6=LC


50 / 50 is 1m longer than 1x2 FBT fiber coupler splitter, connected to SC / APC connector

FQA

1. Q : Are you manufacturer ?

A: yes, we are manufacturer in Shenzhen,China

2. Q : What's your MOQ ?

A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .

3. Q : What's the price ?

A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .

4. Q: Can you quote FOB price ?

A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .


Product Tags:

Disposable Tapered Single Mode Splitter



Optic 1x3 Single Mode Splitter


Quality 50 / 50 is 1m longer than 1x2 FBT fiber coupler splitter, connected to SC / APC connector wholesale

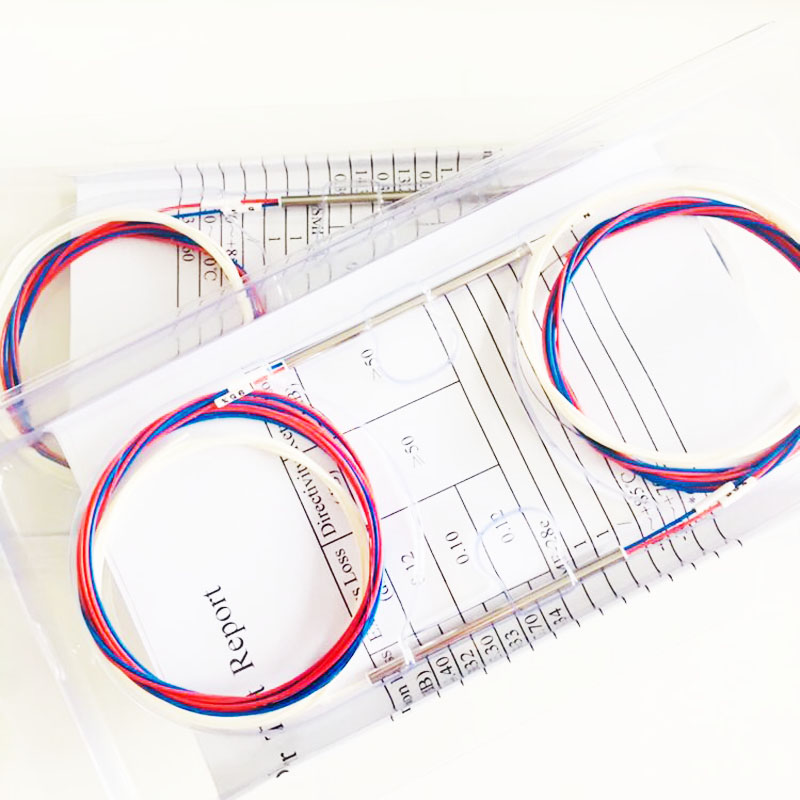

50 / 50 is 1m longer than 1x2 FBT fiber coupler splitter, connected to SC / APC connector Images
