800~1000nm Nx1 High Power Pump Combiner Stable Reliable

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

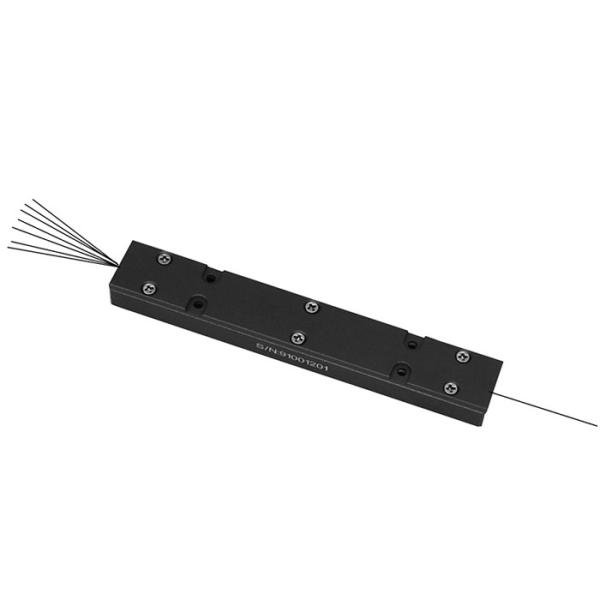

800~1000nm Nx1 High Power Pump Combiner Stable Reliable

  • 1
  • 2

Brand Name : GaPho

Model Number : Pump Combiner

Place of Origin : China

Payment Terms : T/T

Delivery Time : 7-10 day

Packaging Details : Carton

MOQ : 10

Price : Negotiable

Supply Ability : 20000/week

Pump Wavelength : 800~1000nm

Operating Temperature : 0℃~+75℃

Storage Temperature : -40℃~+85℃

Contact Now

High Power Pump Combiner Nx1

1. Features:
 High Transfer Efficiency;
 Stable and Reliable.
2. Applications:
 High Power Fiber Laser;
 High Power Fiber Amplifier
3. Specifications:
Port Configuration 3x1 4x1 7x1 19x1
Pump Wavelength 800~1000nm
Pump Input Fiber X/125 or 200/220 105/125 0.15NA/0.22NA or 200/220 0.22NA
Output Fiber Y/125 or 200/220 200/220 or Y/250 or 20/400
Pump Efficiency >95% >90% >90%
Total Power Handling 300w 350w 1800w
Package Dimension 4x60mm, 70x12x8mm, other 70x12x8mm, 100x15x10mm, other
Operating Temperature 0℃~+75℃
Storage Temperature -40℃~+85℃

4. Ordering Information:

Device ID Explain Option
XXX Device type PCMB
X Port Configuration 3=3x1, 4=4x1, 7=7x1, 19=19x1, Specified
X Pump Wavelength F=915nm, G=975nm, I=1064nm, O=1550nm, K=2000nm
X Pump Fiber A=105/125 NA:0.22 B=105/125 NA: 0.15
H=200/220 NA 0.22
other
X Output Fiber 1=DCF6/125NA:0.14/0.4
2=DCF8/125NA:0.14/0.46
3=DCF10/125 NA:0.08/0.46
4=DCF20/125 NA:0.08/0.46
5=DCF20/250 NA:0.08/0.46
6=DCF30/250 NA:0.06/0.46
8=DCF25/250 NA:0.06/0.46
9=200/220 NA 0.22 O=20/400 NA:0.06/0.46
XX Pigtail Length 08=0.8m,10=1.0m
X Package Dimension A=70x12x8mm
B=100x15x10mm
C=4x60mm
other

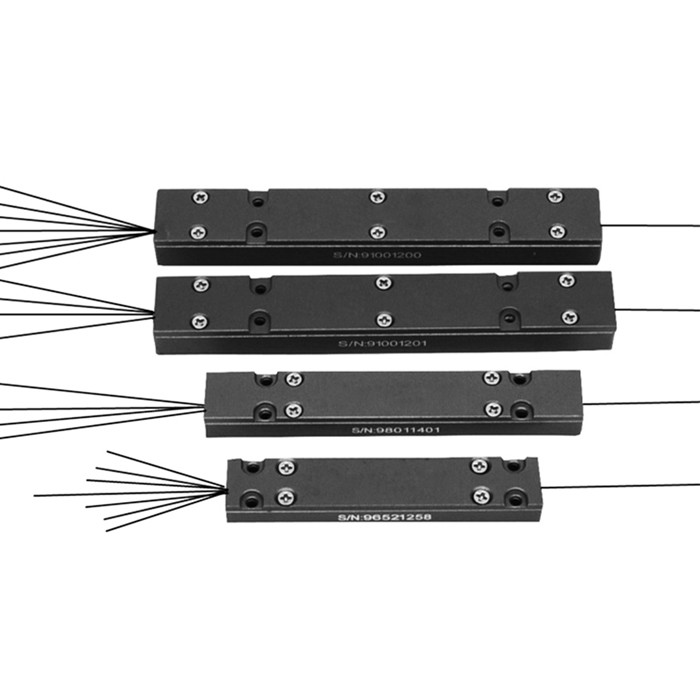

800~1000nm Nx1 High Power Pump Combiner Stable Reliable

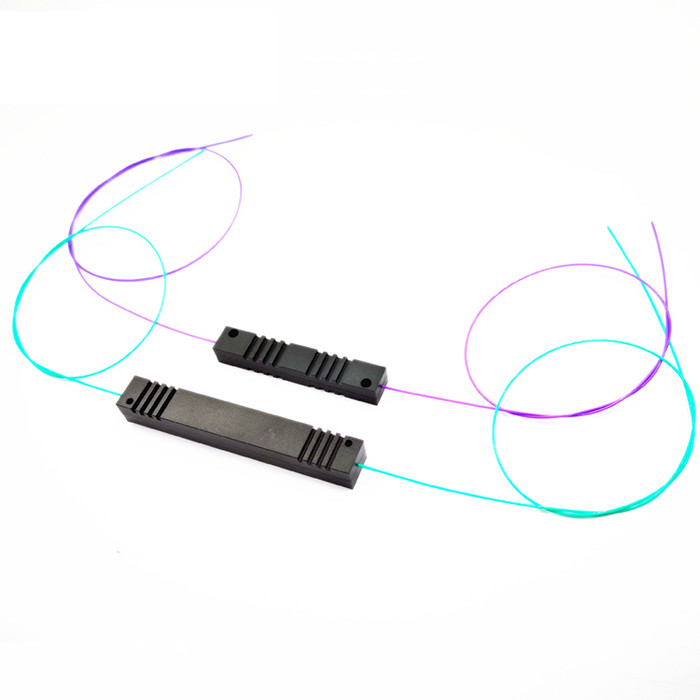

800~1000nm Nx1 High Power Pump Combiner Stable Reliable
