Bi Directional Communication WDM Module T1550R1310 / 1490 For Optical Packaging

Brand Name : GAPHO

Model Number : PWDM

Place of Origin : China

MOQ : 100

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000Per month

Delivery Time : 7-10 day

Packaging Details : Carton

Place of origin : Shenzhen,CHina

Operating temperature (℃) : 0 ~ +70

Storage temperature (℃) : -40 ~ +85

Dimensions (LxW) (mm) : 3.2*14

Insertion loss（dB) -Reflect channel : ≤0.6

Return loss (dB) : ≥45

Insertion loss（dB)-Pass channel : ≤0.3

Pass band wavelength range : 1260-1360& 1480-1500

Reflection band wavelength range : 1540-1560

Contact Now

PWDM-T1550R1310/1490 is used for packaging of optical module, bi-directional communication,CATV receiver and
Description:
PWDM-T1550R1310/1490 is used for packaging of optical module. It can realize the multiplexing of two communication signal
1550 and 1490/1310, which expands the capacity of single fiber and achieves bi-directional communication. It is widely used in
optical network upgrade and expansion, or introduce new comprehensive business ( VATV, TELECOM, integration of three
networks-PON+EOC)etc
Features
  • ·Low Insertion Loss
  • ·Low PDL
  • ·High Isolation
  • ·Excellent Environmental Reliability
Application
  • ·WDM System
  • ·CATV
  • ·Laser Packaging
Specifications:
Bi Directional Communication WDM Module T1550R1310 / 1490 For Optical Packaging

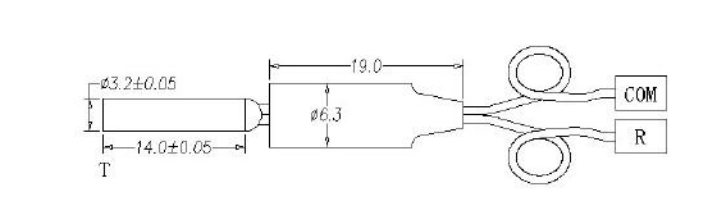

Dimension diagram:
Bi Directional Communication WDM Module T1550R1310 / 1490 For Optical Packaging

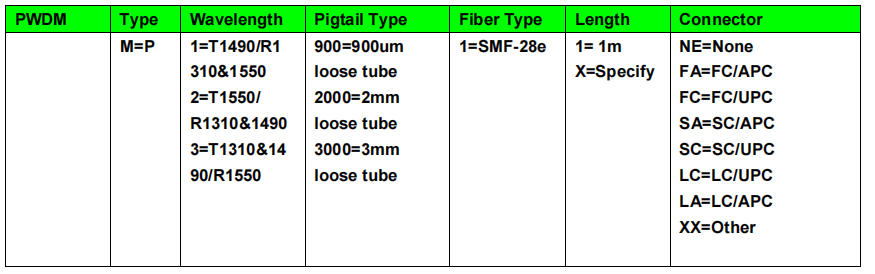

Ordering information:
Bi Directional Communication WDM Module T1550R1310 / 1490 For Optical Packaging
