1X4 CWDM Components Optical Fiber WDM FWDM High Performance

  • 1
  • 2

Brand Name : GaPho

Model Number : 1X4 CWDM Module

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Pass Band(nm) : ≥±6.5

Channel Ripple(dB) : <0.3

Polarization Dependent Loss(dB) : <0.20

Return Loss(dB) : >45

Contact Now

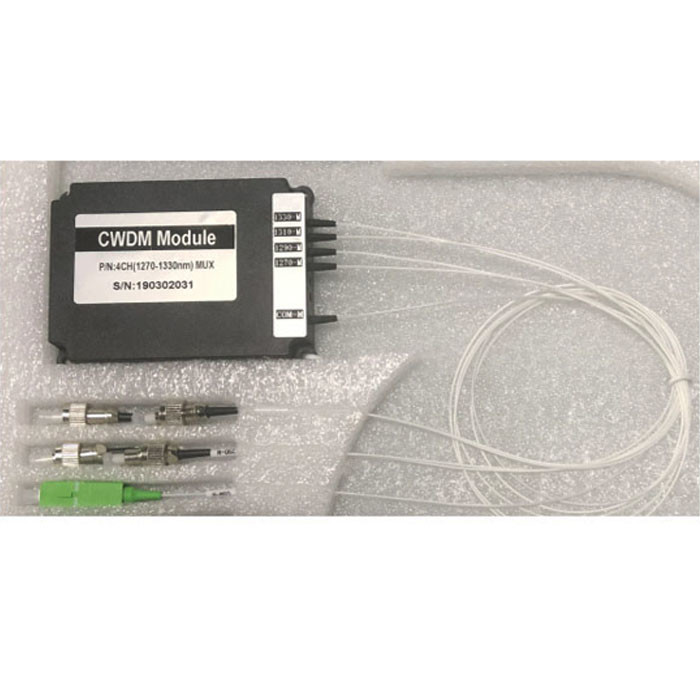

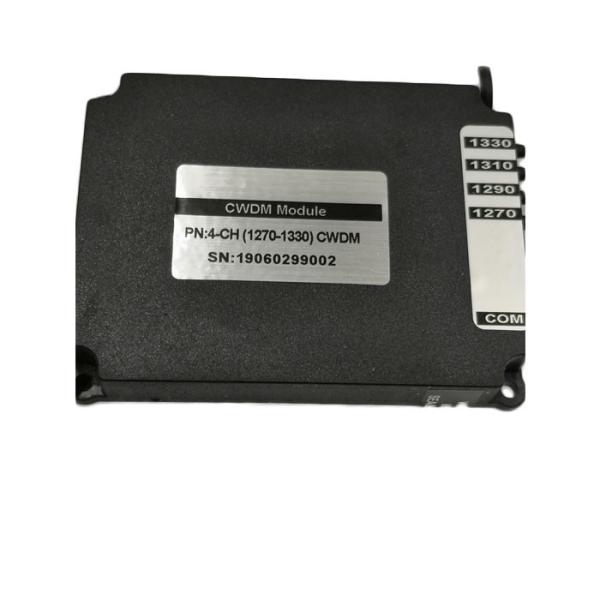

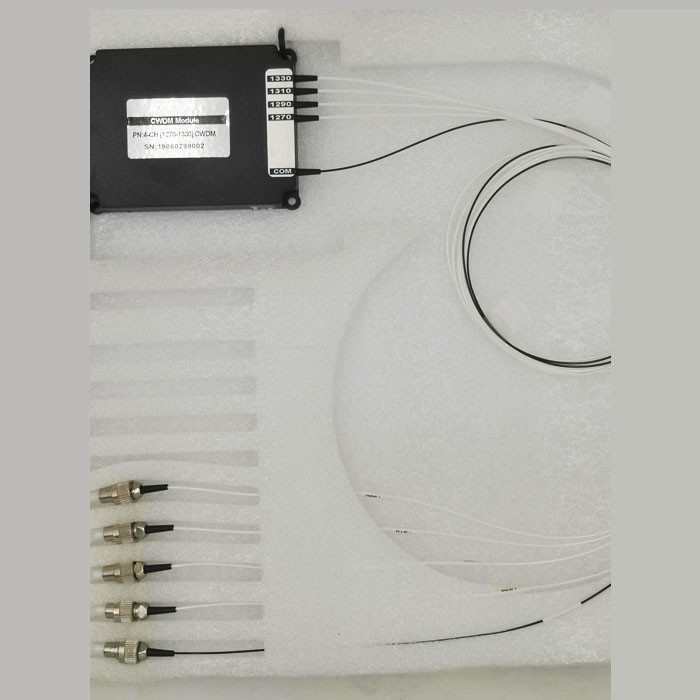

1X4 CWDM Module Optical Fiber WDM FWDM

Parameter
Operating Wavelength(nm) 1270 1290 1310 1330
Insertion Loss (dB) 0.56 0.75 0.89 1.15
Pass Band(nm) ≥±6.5
Channel Ripple(dB) <0.3
Polarization Dependent Loss(dB) <0.20
PMD(ps) <0.20
Isolation Adjacent(dB) >30
Non-adjacent(dB) >45
Directivity(dB) >50
Return Loss(dB) >45
Fiber Length(m) 1
Fiber Type SMF-28e with 0.9mm Loose Tube
Connector Type FC/UPC
Operating Temperature -20~+70℃
Storage Temperature -40~+85℃
Package Dimension 80X60X12

1X4 CWDM Components Optical Fiber WDM FWDM High Performance1X4 CWDM Components Optical Fiber WDM FWDM High Performance
