1440-1685nm WDM Module 3CH CWDM Wavelength Division Multiplexer,Epoxy-free on Optical Path,High Channel Isolation

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

1440-1685nm WDM Module 3CH CWDM Wavelength Division Multiplexer,Epoxy-free on Optical Path,High Channel Isolation

Brand Name : GaPho

Model Number : CWDM

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Price : USD

Wavelength Range : 1440~1685 nm

Uniformity : ≦0.6

Return Loss : ≧35

Operating Temperature : 0~+70

Thermal Stability : ≦0.005

Wavelength Stability : ≦0.002

Directivity : ≧55

Storage Temperature : -40~+85

Fiber length : 1.0

Contact Now

WDM Module 3CH CWDM Wavelength Division Multiplexer

DISCREPTION:

The Raman Wavelength Division Multiplexer (Raman WDM) Module is manufactured by using thin-film filter technology, it used to separate and combine different signal wavelengths at 1440~1685nm. It's featured with low inserion loss and high isolation. It's widely used in raman sensor or other fiber test or meaurement systems

Features:

  • Low Insertion Loss
  • High Channel Isolation
  • High Stability, High Reliability
  • Epoxy-free on Optical Path

Applications:

  • Distributed Temperature System
  • security prevention monitoring system
  • Fiber Optical Amplifier
  • temperature transmitter

Specifications:

3CH MWDM Module Product Delivery Data Sheet
Item Unit Spec Measure Data
Wavelength Range nm 1440~1685
ptical Port N/A Port 1 Port 3 Port 4
Channel Centers(ITU or ITU+1) nm 1550 1450 1650
Optical Port Band nm 1543-1557 1443-1457 1645-1685
Insertion loss dB 0.45 0.51 0.68
PDL dB 0.05 0.04 0.04
Isolation dB 22 62 61.5
Thermal Stability dB/℃ ≦0.005
Wavelength Stability nm/℃ ≦0.002
Uniformity dB ≦0.6
Directivity dB ≧35
Return Loss dB ≧35
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85
Maximum Optical Power Handling mW 300
Fiber Type N/A MM62.5-125 with 900um loose tube Hytrel

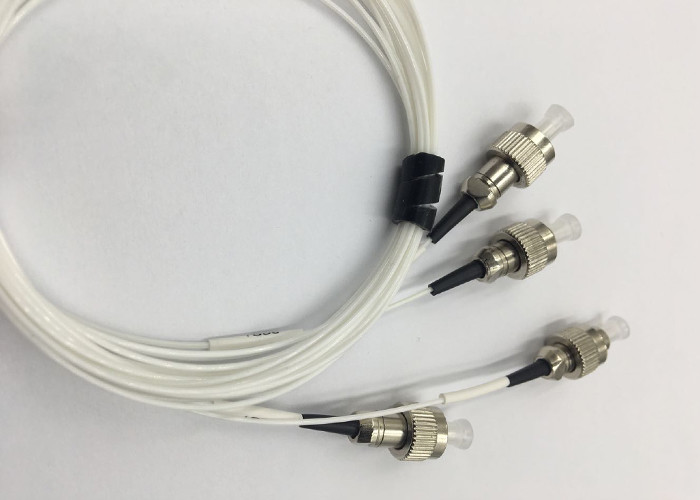

Connector N/A FC/UPC
Fiber Length m 1.0
Dimension (LxWxH) mm 100x80X10(ABS)

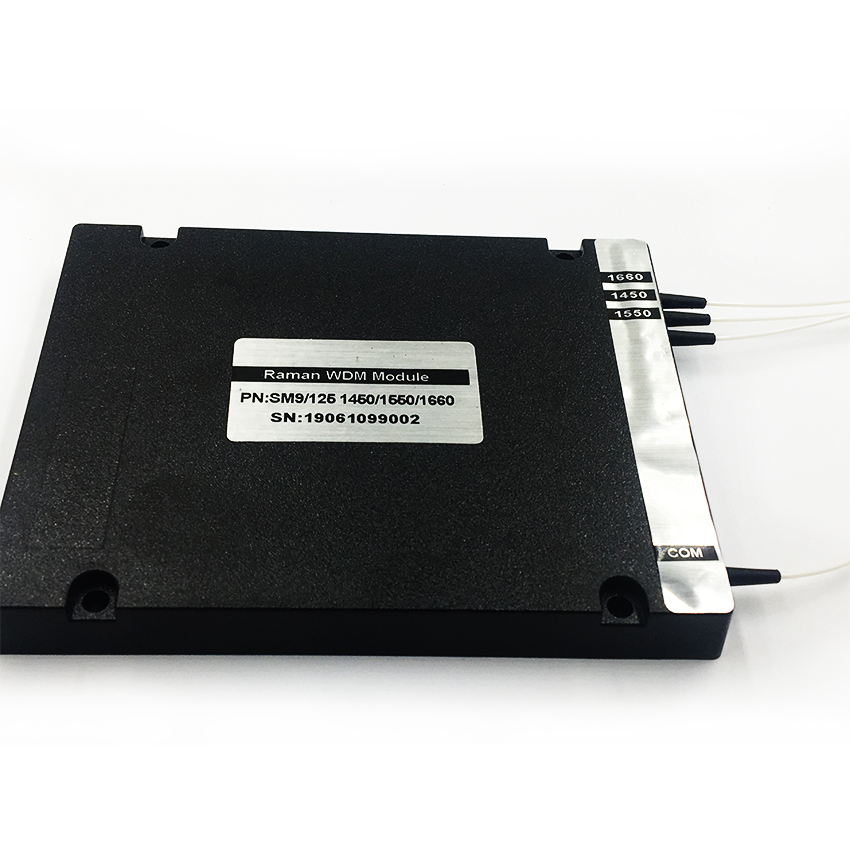

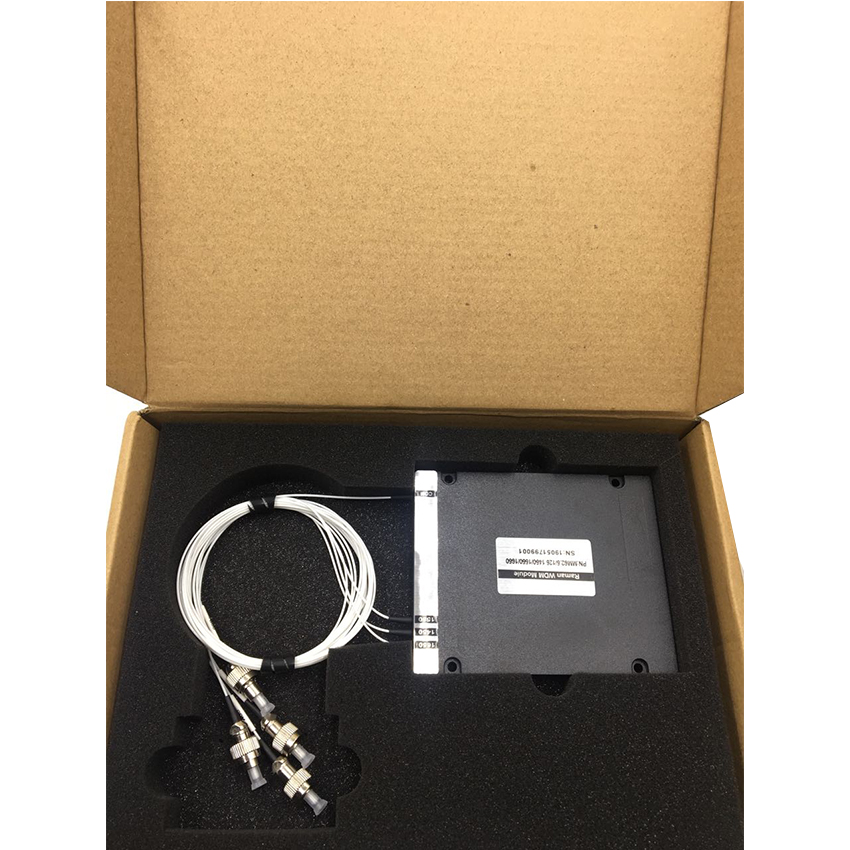

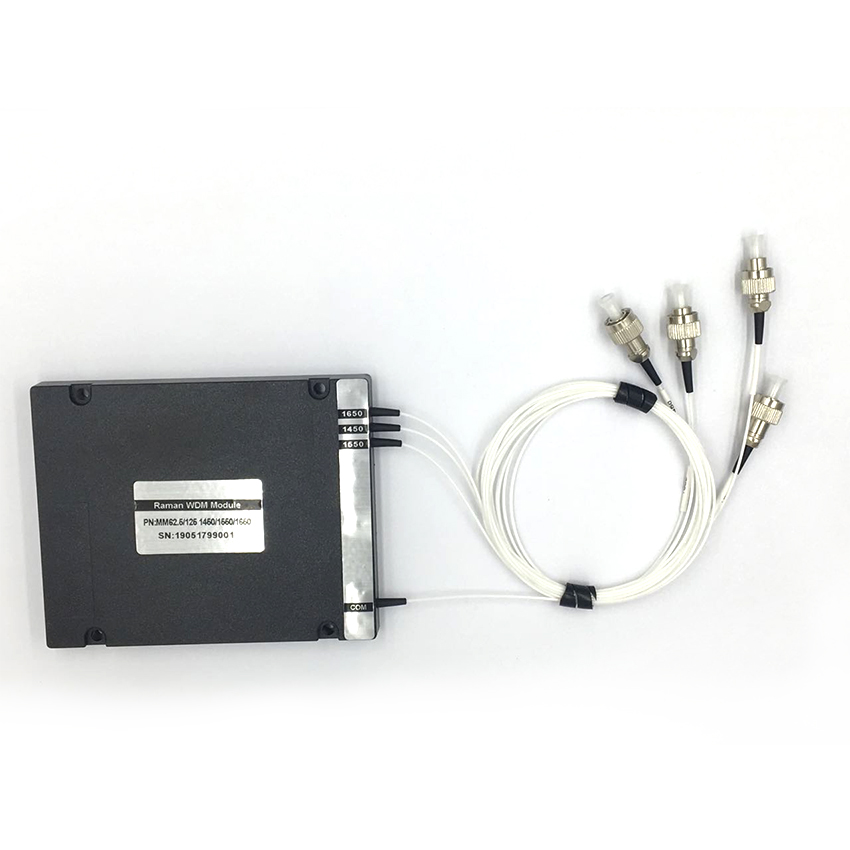

1440-1685nm WDM Module 3CH CWDM Wavelength Division Multiplexer,Epoxy-free on Optical Path,High Channel Isolation1440-1685nm WDM Module 3CH CWDM Wavelength Division Multiplexer,Epoxy-free on Optical Path,High Channel Isolation1440-1685nm WDM Module 3CH CWDM Wavelength Division Multiplexer,Epoxy-free on Optical Path,High Channel Isolation1440-1685nm WDM Module 3CH CWDM Wavelength Division Multiplexer,Epoxy-free on Optical Path,High Channel Isolation
