3CH-18CH WDM CWDM DEMUX With Low Polarization Dependent Loss

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

3CH-18CH WDM CWDM DEMUX With Low Polarization Dependent Loss

Brand Name : GAPHO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : T/T

Supply Ability : 1000 per month

Delivery Time : 7-10 day

Packaging Details : Carton

Operating Wavelength Range : 1260-1620nm

Channel Space : 20

Center Wavelength : ITU-T Grid

Directivity : ≥50dB

Return Loss : ≥45dB

PDL : ≤0.15dB

Operating Temperature : -20~+70℃

Storage Temperature : -40~+85℃

Connector Type / Loss : Customize

Contact Now

3CH-18CH CWDM Demux :Low insertion loss, Exceptional reliability and stability ,Low polarization dependent loss

Description:

CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates. It has a series of advantages, such as multi-kind of packaging structures, low insertion loss, high channel isolation, and so on.

Features:

  • Low insertion loss
  • High cannel isolation
  • Low polarization dependent loss
  • Exceptional reliability and stability
  • Highstability and reliability
  • CWDM system
Applications
  • Access networks
  • Metro WDM Systems
  • Enterprise networks
  • Maximizes fiber in local loop applications

Specification:

Parameter Unit CWDM Demux
Operating Wavelength Range nm 1260~1620
Channel Space nm 20
Center Wavelength nm ITU-T Grid
Pass band @0.5dB dB λc ± 6.5
Channel / 3 4 5 6 8 9 16 18

Insertion

Loss*(Com->Out)

 dB <1.6 <2.0 <2.4 <2.8 <3.2 <3.5 <5.0 <5.6
Isolation (Adjacent) dB ≥30
Isolation (Non-Adjacent) dB ≥45
Directivity dB ≥50
Return Loss dB ≥45
PDL dB ≤0.15
PMD dB ≤0.15
IL Temperature Sensitivity

dB/℃

 <0.002
Wavelength Temperature Shifting nm/℃ <0.001
Pigtail Diameter mm 0.9
Pigtail Length cm ≥100
Connector Type / Loss dB Customize
Power Handling mW ≤300
Fiber Type / SMF-28e
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~+85
Package Dimension(L x W x H) mm 100x80x10 120x80x18

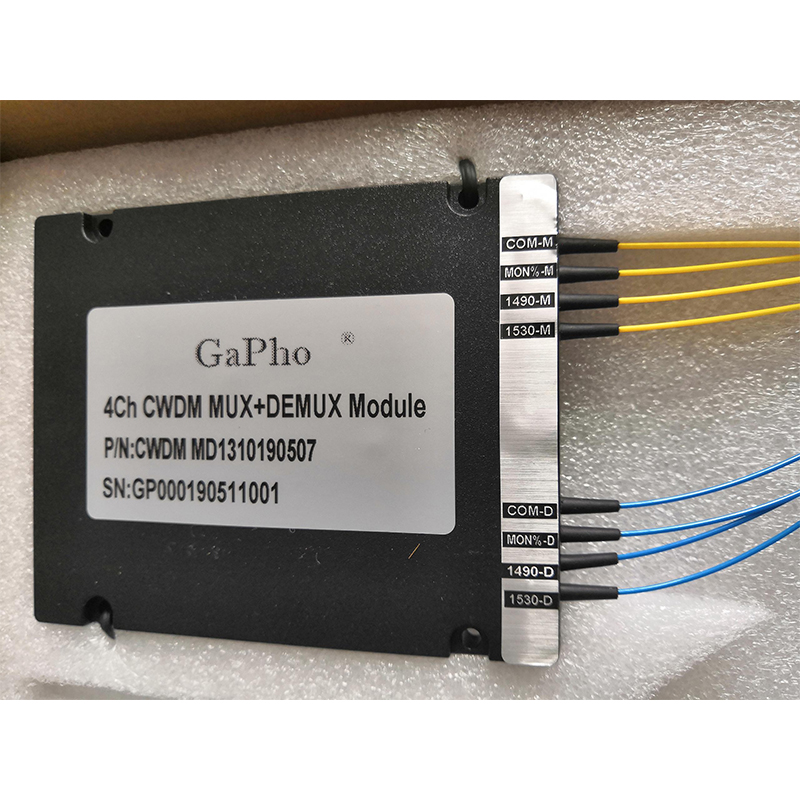

3CH-18CH WDM CWDM DEMUX With Low Polarization Dependent Loss3CH-18CH WDM CWDM DEMUX With Low Polarization Dependent Loss3CH-18CH WDM CWDM DEMUX With Low Polarization Dependent Loss
