4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks

Brand Name : GAPHO

Place of Origin : China

MOQ : 100

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000 per month

Delivery Time : 7-10 day

Packaging Details : Carton

Wavelength range : 1260-1360 nm

Channel centers : 1295.56/1300.05/1304.58/1309.14 nm

Channels : 4 CH

Fiber type : SMF-28e with 0.9mm

Connector Type : LC/UPC

Package dimensions (L x W x H) : 80 x 60 x 12 mm

Channel insertion loss : ≤1.5 dB

Isolation (adjacent channel) : ≥25 dB

Isolation (non-adjacent channel) : ≥40 dB

Storage temperature : -40~ +85 °c

Operating temperature range : -5 ~ 70 °c

Polarization dependent loss : ≤0.2 dB

Contact Now

4 Channels 1260-1360nm, Single Fiber LAN-WDM Mux Demux, Side-A, ABS Pigtailed Module, LC/UPC for Access networks

Description:

Single Fiber LAN-WDM Mux Demux is usually used for 5G fronthaul network where wavelengths are packed tightly together over the O-band, up to 8 wavelengths in 800GHz grid(4.5nm). Based on Thin-Film-Filter (TFF), this LAN-WDM Mux Demux features small form factor, ultra-low insertion loss, high channel isolation, and unparallel reliability.It incorporates the existing 4G network and manage highly dense fiber connections in 5G network in a cost-effective way.

Features:

  • Low insertion loss
  • High cannel isolation
  • Low polarization dependent loss
  • Exceptional reliability and stability

Applications:

  • Access networks
  • Metro WDM Systems
  • Enterprise networks

Specifications:

Item Unit Parameters Note
Wavelength range nm 1260-1360
Channel centers nm 1295.56/1300.05/1304.58/1309.14
Channels ch 4
Passband nm ≥+/-1.1
Passband ripple dB ≤0.3
Channel insertion loss dB ≤1.5
Isolation (adjacent channel) dB ≥25
Isolation (non-adjacent channel) dB ≥40
Polarization dependent loss dB ≤0.2
Polarization mode dispersion ps ≤0.2
Directivity dB ≥50
Return loss dB ≥45
Optical power handling mW ≤500
Operating temperature range 0C -5 to 70 0C
Storage temperature range 0C -40 to +85 0C
Fiber type SMF-28e with 0.9mm
Connector Type LC/UPC

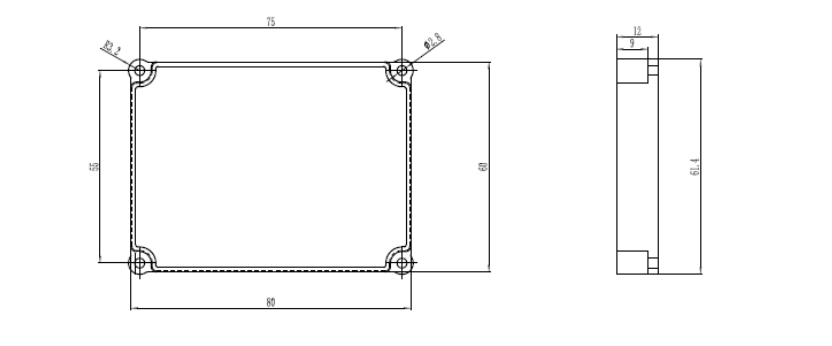

Package dimensions (L x W x H) mm 80 x 60 x 12 ABS
