1x2 1310 / 1490 / 1550nm PWDM Module High Isolation 3 Port Filter Chip Type

Brand Name : GaPho

Model Number : WDM

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T, D/A, D/P, T/T, L/C

Supply Ability : Negotiable

Delivery Time : 5-10 day

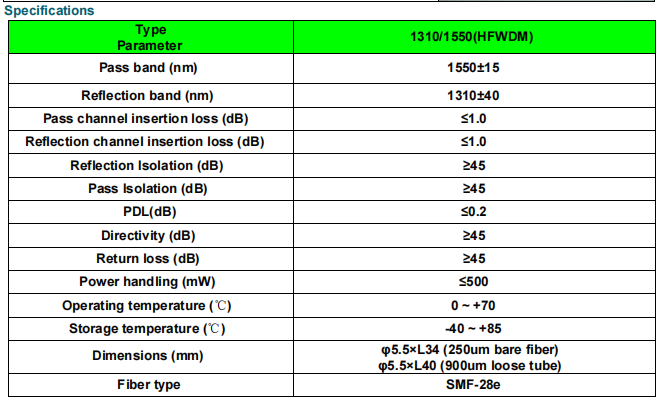

Type Parameter : 1310/1550(HFWDM)

Pass band (nm) : 1550±15

Pass channel insertion loss (dB) : ≤1.0

Reflection Isolation (dB) : ≥45

Pass Isolation (dB) : ≥45

Power handling (mW) : ≤500

Contact Now

WDM Module

FWDM device is mainly used for passive WDM module, is a kind of based on TFF (membrane filter) of WDM technology, with a variety of optional packaging size, wavelength, from the public (COM) (Pass), reflection and transmission end end (Reflect) of three ports, and CWDM FWDM difference can be in a single wide wavelength van Wai multiplexing channel multiplexing or solution of two or more different wavelengths of light signals, and increase the signal transmission speed and communication capacity, widely used in telecommunications, radio and television, enterprise network, campus network, and other fields

1x2 1310 / 1490 / 1550nm PWDM Module High Isolation 3 Port Filter Chip Type

Features
  • Low Insertion Loss
  • High Isolation
  • High Stability
  • reliability
Application
  • Communications System
  • Metro/Access
  • CATV
